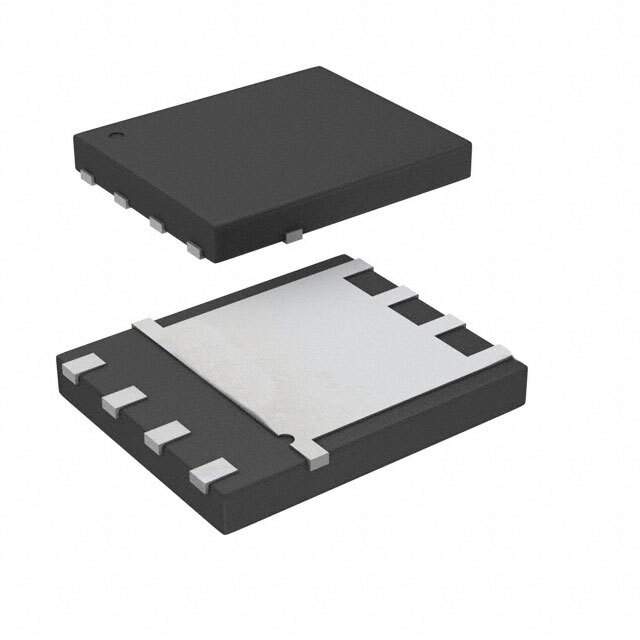

IPL60R2K1C6SATMA1

Name: IPL60R2K1C6SATMA1
Brand: Infineon Technologies
SKU: 967802
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL60R2K1C6SATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 600V 2.3A THIN-PAK / N-Channel 600 V 2.3A (Tc) 21.6W (Tc) Surface Mount PG-TSON-8-2
Datasheet	IPL60R2K1C6SATMA1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™ C6
Package	Tape & Reel (TR)
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	2.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.1Ohm @ 760mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 60µA
Gate Charge (Qg) (Max) @ Vgs	6.7 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	140 pF @ 100 V
Power Dissipation (Max)	21.6W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TSON-8-2
Package / Case	8-PowerTDFN
Base Product Number	IPL60R
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	INFINFIPL60R2K1C6SATMA1,2156-IPL60R2K1C6SATMA1,SP001163026
Standard Package	5,000
Win Source Part Number	967802-IPL60R2K1C6SATMA1
Ultra Librarian 3D Model	Ultra Librarian IPL60R2K1C6SATMA1 CAD Model

Alternative Products

Description

The CoolMOS™ C6 MOSFET IPL60R2K1C6SATMA1 is an N-channel FET designed for high-performance applications from Infineon Technologies.

Drain to Source Voltage: 600V
Continuous Drain Current: 2.3A @ 25°C
Rds On (Max): 2.1Ohm @ 760mA and 10V
Application: Power Supplies, DC-DC Converters, and Motor Drives
Package: 8-PowerTDFN
Gate Charge: 6.7nC @ 10V
Input Capacitance (Ciss): 140pF @ 100V
Vgs(th): 3.5V @ 60μA
Power Dissipation: 21.6W @ Tc
Lifecycle Status: Obsolete
