Same model may have multiple batches, images only for reference.

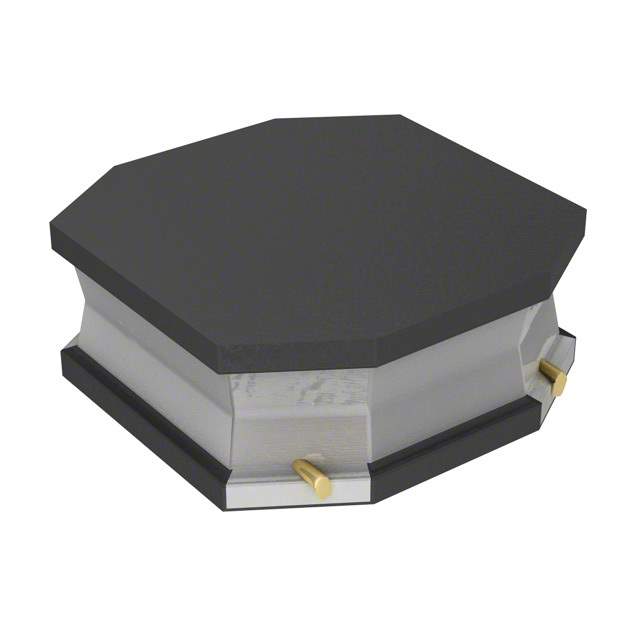

VLS3012T-2R2M1R5 Real Image
Same model may have multiple batches, images only for reference.

VLS3012T-2R2M1R5

Part No VLS3012T-2R2M1R5
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.5A 98 MOHM SMD
Datasheet
VLS3012T-2R2M1R5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.5A
Current - Saturation 1.5A
DC Resistance (DCR) 98 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036397-VLS3012T-2R2M1R5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VLS
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin China
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian VLS3012T-2R2M1R5 CAD Model

Description

The TDK Corporation VLS3012T-2R2M1R5 is a wirewound type surface mount device (SMD) inductor with a current rating of 1.5A and an inductance of 2.2μH.

  • Popularity: High popularity
  • Status: Not for new designs
  • Supply and Demand Status: Balanced
  • Tolerance: ±20%
  • DC Resistance (DCR): 98 mOhm Max
  • Temperature Range: -40°C to 105°C
  • Alternative Parts: LPS3015-222MSD, SMP1210S-221KLF, and TPI3015CT 2R2M
