Same model may have multiple batches, images only for reference.

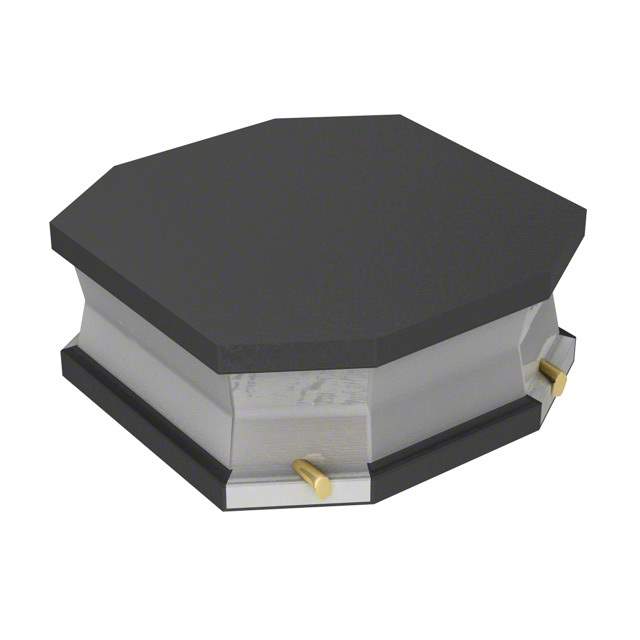

VLS3012T-4R7M1R0 Real Image
Same model may have multiple batches, images only for reference.

VLS3012T-4R7M1R0

Part No VLS3012T-4R7M1R0
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1A 156 MOHM SMD
Datasheet
VLS3012T-4R7M1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating 1A
Current - Saturation 1A
DC Resistance (DCR) 156 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036399-VLS3012T-4R7M1R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS3012T-4R7M1R0 CAD Model

Description

The VLS3012T-4R7M1R0 is a wirewound SMD inductor manufactured by TDK Corporation.

  • Design: Provide high inductance, low DC resistance, and high reliability
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Ideal for: Use in various applications
  • Solution: Reliable and cost-effective
  • Suitable for: Applications that require high-quality inductors
