Same model may have multiple batches, images only for reference.

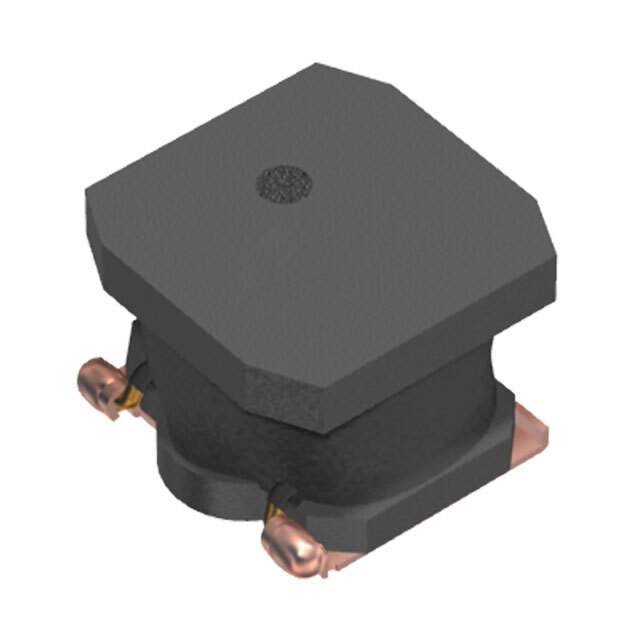

VLS6045EX-100M Real Image
Same model may have multiple batches, images only for reference.

VLS6045EX-100M

Part No VLS6045EX-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 3.4A 61 MOHM SMD / Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 3.4A 0.0611Ohm DCR 2424 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLS-EX
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 3.4A
Current - Saturation 3.9A
Shielding Shielded
DC Resistance (DCR) 61 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 799113-VLS6045EX-100M
Popularity Medium
Supply and Demand Status Limited
Family Name VLS
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian VLS6045EX-100M CAD Model

Description

The TDK Corporation VLS6045EX-100M is a wirewound, shielded inductor manufactured by TDK Corporation.

  • Current Rating: 3.4A
  • Inductance: 10μH
  • Supply and Demand Status: Limited
  • Package: Nonstandard
  • Dimensions: 0.236" L x 0.236" W (6.00mm x 6.00mm)
