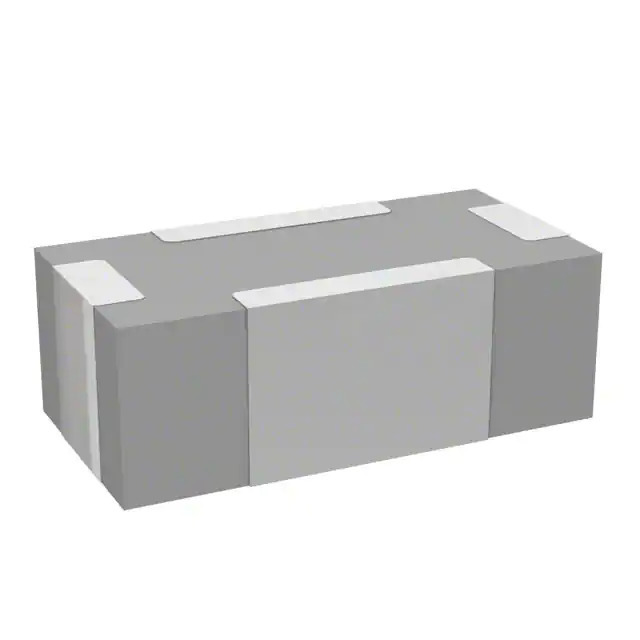

YFF15SC1E222MT000N TDK Corporation
Same model may have multiple batches, images only for reference.

YFF15SC1E222MT000N

Part No YFF15SC1E222MT000N
Manufacturer TDK Corporation
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 2200PF 20% 25V 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Feed Through Capacitors
Mfr TDK Corporation
Series YFF-SC
Package Tape & Reel
Product Status Active
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 25V
Current 1 A
DC Resistance (DCR) (Max) 300mOhm
Temperature Range - Operating -55°C ~ 125°C
Insertion Loss 30dB @ 100MHz ~ 4GHz
Temperature Coefficient -
Ratings -
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), 4 PC Pad
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height (Max) 0.014" (0.35mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1369344-YFF15SC1E222MT000N
Ultra Librarian 3D Model Ultra Librarian YFF15SC1E222MT000N CAD Model

Description

The YFF-SC series is a feed-through capacitor designed for use in filters. It has a capacitance of 2200 pF with a tolerance of ±20%. The voltage rating is 25V, making it suitable for various electronic applications.

  • Manufacturer: TDK Corporation
  • Product Name: YFF-SC
  • Capacitance: 2200 pF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Size: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • Insertion Loss: 30dB @ 100MHz to 4GHz
  • Maximum DC Resistance (DCR): 300mOhm
  • Current Rating: 1A
  • Mounting Type: Surface Mount
