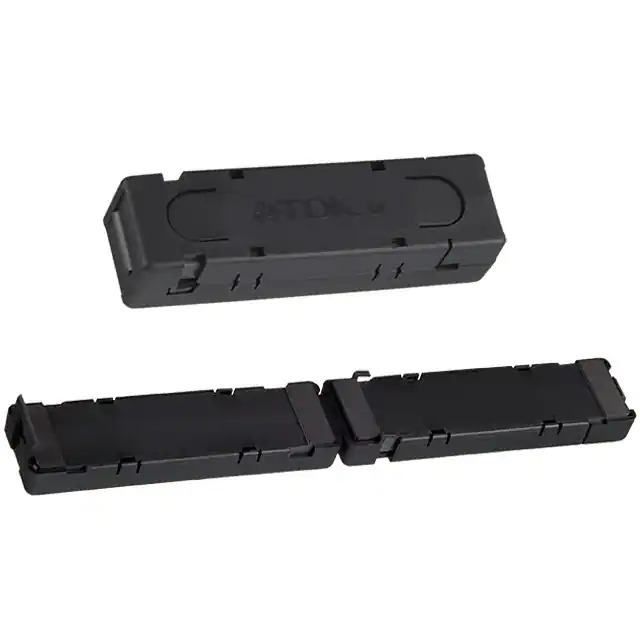

ZCAT4625-3430D-BK TDK Corporation
Same model may have multiple batches, images only for reference.

ZCAT4625-3430D-BK

Part No ZCAT4625-3430D-BK
Manufacturer TDK Corporation
Catalog Cable Ferrites
Description FERRITE CORE 35 OHM HINGED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Cable Ferrites
Mfr TDK Corporation
Series ZCAT
Package Bulk
Product Status Active
Type Flat
Design Hinged (Snap On)
Impedance @ Frequency 35Ohm @ 50MHz ~ 500MHz
Material 30
Inner Dimension 1.339" W x 0.051" H (34.00mm x 1.30mm)
Outer Dimension 1.791" W x 0.472" H (45.50mm x 12.00mm)
Ratings -
Mounting Type Free Hanging
Length 0.965" (24.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8547.10.8000
Win Source Part Number 1369327-ZCAT4625-3430D-BK
Ultra Librarian 3D Model Ultra Librarian ZCAT4625-3430D-BK CAD Model

Description

The TDK Corporation ZCAT series cable ferrite filter is a flat type component with a length of 0.965" (24.50mm). TDK Corporation.

  • Impedance: 35Ohm @ 50MHz ~ 500MHz
  • Design: Hinged (snap-on)
  • Mounting: Free-hanging
  • Inner Dimension: 1.339" W x 0.051" H (34.00mm x 1.30mm)
  • Outer Dimension: 1.791" W x 0.472" H (45.50mm x 12.00mm)
