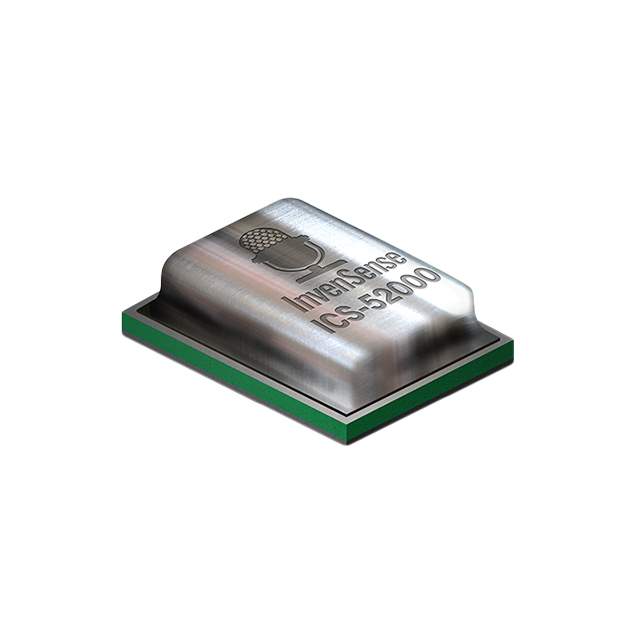

Same model may have multiple batches, images only for reference.

ICS-52000

Name: ICS-52000
Brand: TDK InvenSense
SKU: 1323800
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ICS-52000
Manufacturer	TDK InvenSense
Catalog	Microphones
Description	MICROPHONE MEMS DIGITAL TDM OMNI / 50 Hz ~ 20 kHz Digital, TDM Microphone MEMS (Silicon) 1.62 V ~ 3.63 V Omnidirectional (-26 ±1dB @ 94dB SPL) Solder Pads
Datasheet	ICS-52000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Audio Products>Microphones
Manufacturer	TDK InvenSense
Packaging	Reel - TR
Type	MEMS (Silicon)
Output Type	Digital, TDM
Direction	Omnidirectional
Frequency Range	50 Hz ~ 20 kHz
Sensitivity	-26 ±1dB @ 94dB SPL
S/N Ratio	65dB
Voltage Range	1.62 V ~ 3.63 V
Current - Supply	1.5 mA
Port Location	Bottom
Termination	Solder Pads
Size / Dimension	0.157" L x 0.118" W (4.00mm x 3.00mm)
Height (Max)	0.043" (1.10mm)
Shape	Rectangular
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8518.10.8030
Other Part Number	ICS-52000-ND,1428-1122-1,1428-1122-2,Q10312532,1428-1122-6
Standard Package	5,000
Win Source Part Number	1323800-ICS-52000
Ultra Librarian 3D Model	Ultra Librarian ICS-52000 CAD Model

Alternative Products

Description

The 1323800-ICS-52000 is a MEMS (Silicon) type microphone manufactured by TDK InvenSense.

Shape: Rectangular
Size/Dimension: 0.157" L x 0.118" W (4.00mm x 3.00mm)
Frequency Range: 50 Hz ~ 20 kHz
Sensitivity: -26 ±1dB @ 94dB SPL
S/N Ratio: 65dB
Voltage Range: 1.62 V ~ 3.63 V
Current Supply: 1.5 mA
Direction: Omnidirectional
Termination: Solder Pads
