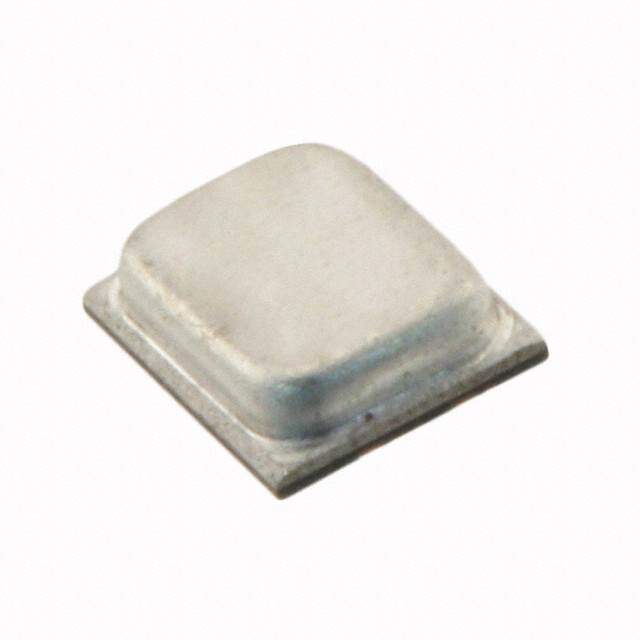

INMP504ACEZ-R7 Real Image
Same model may have multiple batches, images only for reference.

INMP504ACEZ-R7

Part No INMP504ACEZ-R7
Manufacturer TDK InvenSense
Catalog Microphones
Description MIC MEMS ANALOG OMNI -38DB / Mic Omni-Directional -38dB Square Solder Pad
Datasheet
INMP504ACEZ-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer TDK InvenSense
Series INMP504
Packaging Reel package
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz ~ 20kHz
Sensitivity -38dB ±3dB @ 94dB SPL
S/N Ratio 65dB
Impedance 200 Ohm
Voltage Range 1.6 ~ 3.3V
Operating Supply Current 225μA
Port Location Bottom
Termination Solder Pads
Dimension 0.132" L x 0.098" W (3.35mm x 2.50mm)
Height (Maximum) 0.039" (0.98mm)
Shape Rectangular
Win Source Part Number 776805-INMP504ACEZ-R7
Popularity Medium
Supply and Demand Status Limited
Family Name INMP405
Introduction Date May 21, 2014
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian INMP504ACEZ-R7 CAD Model

Description

This electronic component is a TDK InvenSense product with a Win Source Part Number of 776805-INMP504ACEZ-R7.

  • Series: INMP504
  • Package: Reel
  • Type: MEMS (Silicon)
  • Termination: Solder Pads
  • Impedance: 200 Ohm
  • Frequency Range: 100Hz ~ 20kHz
  • Output Type: Analog
  • Shape: Rectangular
  • Direction: Omnidirectional
  • Sensitivity: -38dB ±3dB @ 94dB SPL
  • Family Name: INMP405
  • S/N Ratio: 65dB
  • Voltage Range: 1.6 ~ 3.3V
  • Port Location: Bottom
  • Dimension: 0.132" L x 0.098" W (3.35mm x 2.50mm)
  • Operating Supply Current: 225μA
  • Maximum Height: 0.039" (0.98mm)
  • Introduction Date: May 21, 2014
  • ECCN: EAR99
  • Country of Origin: Taiwan
  • Estimated EOL Date: 2030
  • Supply and Demand Status: Limited
