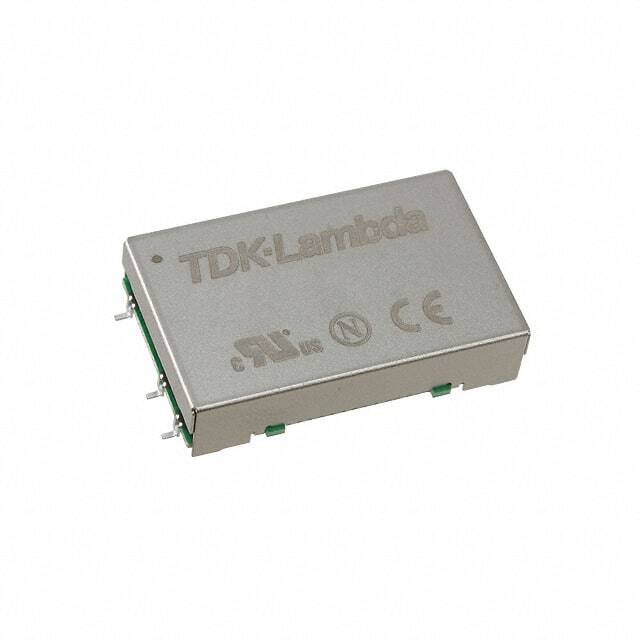

CC25-2403SR-E
Same model may have multiple batches, images only for reference.

CC25-2403SR-E

Part No CC25-2403SR-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 25W / Isolated Module DC DC Converter 1 Output 3.3V 7.5A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc.
Series CC-E (25W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Current - Output (Max) 7.5A
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting Type Surface Mount
Package / Case 25-SMD Module
Size / Dimension 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Control Features Enable, Active High
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 866005-CC25-2403SR-E
Ultra Librarian 3D Model Ultra Librarian CC25-2403SR-E CAD Model

Description

The 866005-CC25-2403SR-E is a power supply module designed for board mount applications in the field of power electronics from TDK-Lambda Americas Inc.

  • Series: CC-E
  • Power Output: 25W
  • Type: Isolated Module
  • Size: 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
  • Features: Remote On/Off and Overcurrent Protection (OCP)
  • Input Voltage Range: 18V to 36V
  • Output Voltage: 3.3V
  • Efficiency: 90%
  • Application: Information Technology Equipment (ITE)
  • Package: Bulk
  • Status: Obsolete
  • Voltage Isolation: 500V
  • Maximum Output Current: 7.5A
  • Mounting: Surface Mountable
  • Operating Temperature Range: -40°C to 85°C
  • HTSUS Code: 8504.40.9580
