Same model may have multiple batches, images only for reference.

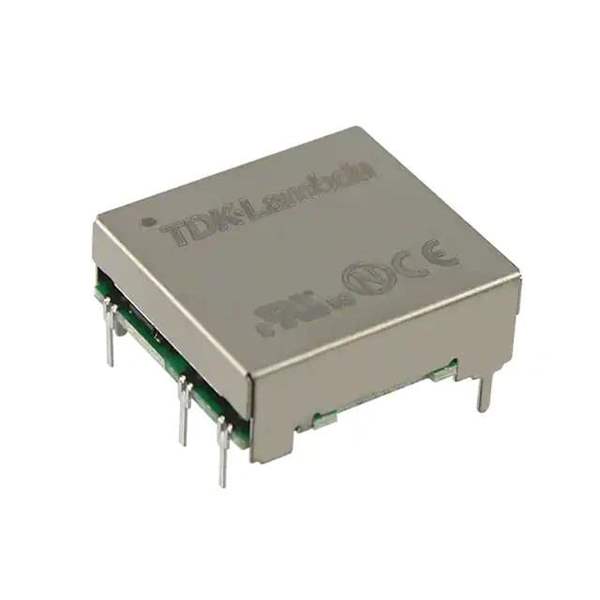

CC6-1205SF-E Real Image
Same model may have multiple batches, images only for reference.

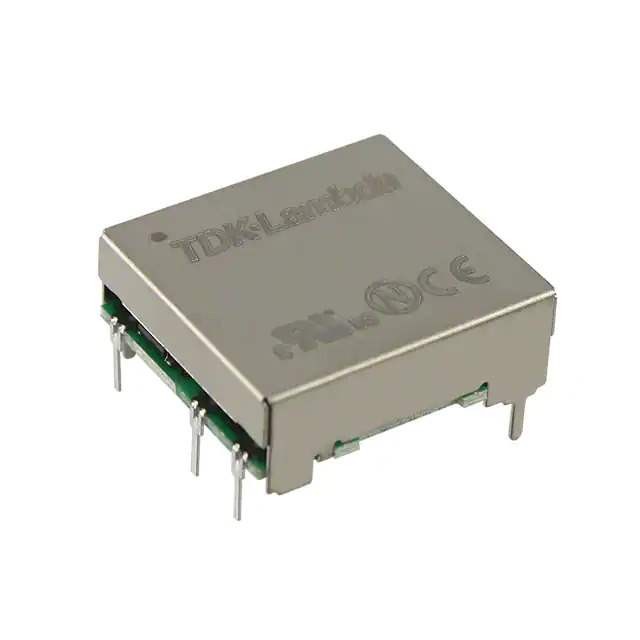

CC6-1205SF-E

Part No CC6-1205SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 6W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc.
Series CC-E (6W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 1.2A
Power (Watts) 6 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC6-1205
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 576780-CC6-1205SF-E
Ultra Librarian 3D Model Ultra Librarian CC6-1205SF-E CAD Model

Description

The CC6-1205SF-E is a 6W isolated module DC-DC converter from TDK-Lambda Americas Inc.

  • Series: CC-E
  • Application: ITE (commercial)
  • Size: 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
  • Package: Tray
  • Power Rating: 6W
  • Output: Single
  • Maximum Current: 1.2A
  • Input Voltage Range: 9V to 18V
  • Output Voltage: Fixed @ 5V
  • Mounting: Through-hole
  • Package: 7-DIP module
  • Operating Temperature: -40°C to 85°C
