ON Semiconductor EGP20K Fast Recovery Rectifier

The ON Semiconductor EGP20K is a high-efficiency, fast recovery rectifier designed to meet the demanding needs of modern electronic circuits. This rectifier is a part of the EGP20 series, which is well-known for its reliability and performance in rectification tasks. The EGP20K is capable of handling a repetitive reverse voltage of up to 800V and has a forward current rating of 2A, making it suitable for a wide range of applications.

One of the key features of the EGP20K is its fast reverse recovery time, which minimizes energy loss during the transition from conducting to non-conducting states. This makes it an excellent choice for high-frequency applications where efficiency is paramount. Additionally, the device boasts a low forward voltage drop, further enhancing its efficiency by reducing power dissipation during operation.

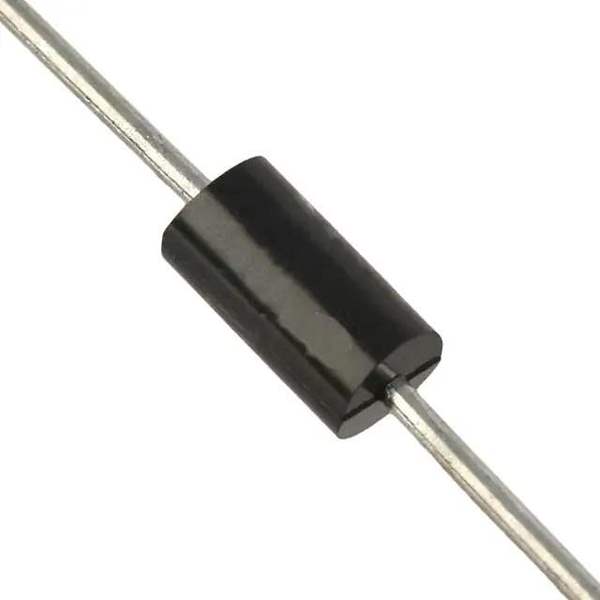

The EGP20K is packaged in a compact DO-204AL (DO-41) axial-lead package, which is designed for easy installation in a variety of circuit configurations. Its lead-free and RoHS-compliant design ensures that it meets current environmental standards, making it suitable for use in eco-conscious products.

This rectifier is widely used in power supply circuits, inverters, converters, and free-wheeling diodes for motor applications. It is also suitable for use in automotive environments, thanks to its robust construction and ability to withstand harsh conditions. The EGP20K's combination of fast recovery time, high voltage capability, and low power loss makes it an ideal choice for designers looking to optimize their power management solutions.

Technical specifications of the EGP20K include a maximum operating junction temperature of 150°C, which ensures stable performance even at elevated temperatures. The device also features a surge overload rating, providing additional protection against unexpected power spikes. With its excellent performance characteristics and ON Semiconductor's reputation for quality, the EGP20K is a reliable component that can enhance the efficiency and durability of your electronic designs.

For detailed information, datasheets, and technical support, customers are encouraged to visit ON Semiconductor's official website or contact their local sales representative.
