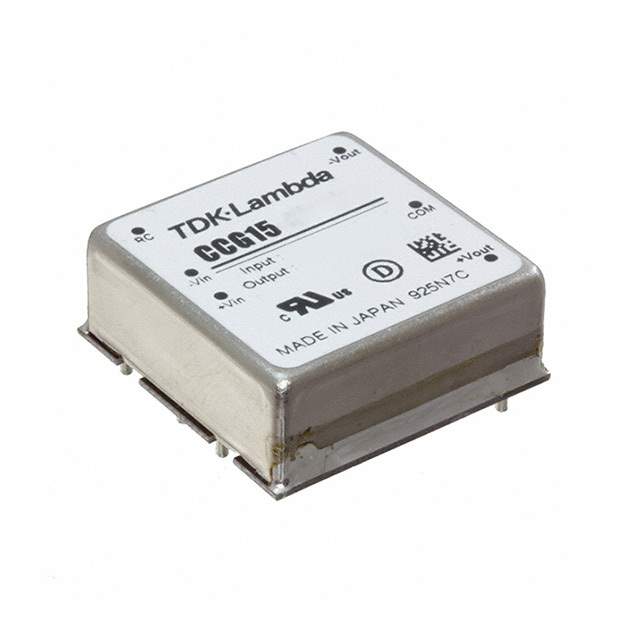

CCG15-24-05S

Part No CCG15-24-05S
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000757-CCG15-24-05S
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 3A
Power (Watts) 15W
Voltage - Isolation 1.5kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off, OCP
Operating Temperature -40°C ~ 85°C
Efficiency 87%
Grade -
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Approval Agency IEC, UL, CSA, EN, CE, UKCA
Standard Number 62368-1
Win Source Part Number Cross
Manufacturer TDK-Lambda-Americas-Inc.
Category Power Supplies - Board Mount
Packaging Tray
Operating Temperature Range -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian CCG15-24-05S CAD Model

Description

The CCG15-24-05S is a DC-DC converter module manufactured by TDK-Lambda Americas Inc. DC-DC converters are power electronic devices that convert a DC voltage from one level to another. They are essential components in a wide range of electronic systems, providing regulated power to various circuits and devices.

Applications

  • Industrial Automation: Powers sensors, actuators, and control systems in industrial environments.
  • Telecommunications: Used in telecom equipment such as routers, switches, and base stations.
  • Medical Equipment: Powers medical devices, ensuring stable and reliable operation.
  • Transportation: Employed in transportation systems, including electric vehicles and railway systems.
  • Renewable Energy: Used in solar inverters and other renewable energy systems.

Features

  • Input Voltage Range: Operates with an input voltage of 18-36VDC.
  • Output Voltage: Provides a regulated output voltage of 5VDC.
  • Output Current: Delivers an output current of up to 3A.
  • Isolation: Offers galvanic isolation between the input and output, enhancing safety and reliability.
  • Protection Features: Includes overvoltage protection, overcurrent protection, and short-circuit protection.

Benefits

  • Stable Power: Provides a stable and regulated output voltage, ensuring reliable operation of connected devices.
  • Isolation: Galvanic isolation enhances safety by preventing ground loops and electrical hazards.
  • Protection: Overvoltage, overcurrent, and short-circuit protection safeguards the converter and connected devices.
  • Efficiency: High efficiency minimizes energy loss and reduces heat generation.
  • Compact Size: Compact module design allows for easy integration into various applications.

Additional Details

The CCG15-24-05S DC-DC converter is designed for board-mount applications, simplifying installation and integration. It features a robust design and is built to withstand harsh environmental conditions. The converter is typically cooled by convection or conduction. TDK-Lambda provides detailed datasheets with comprehensive specifications, including efficiency curves, thermal characteristics, and safety certifications. This converter meets industry standards for safety and performance.
