Same model may have multiple batches, images only for reference.

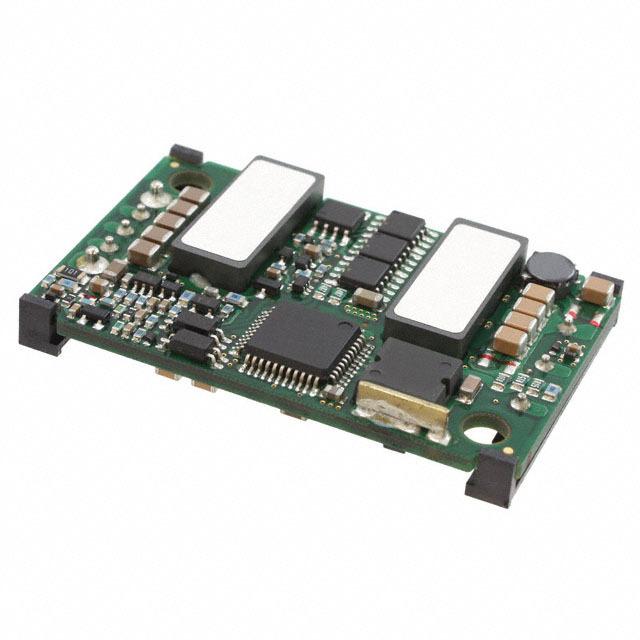

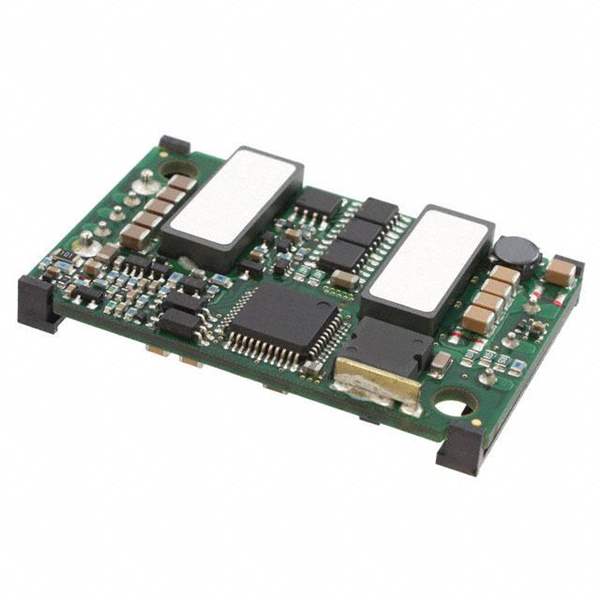

PAQ100S483R3

Name: PAQ100S483R3
Brand: TDK-Lambda Americas Inc.
SKU: 268073
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PAQ100S483R3
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 3.3V 83W
Datasheet	PAQ100S483R3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	TDK-Lambda Americas Inc.
Series	PAQ100
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	3.3V
Current - Output (Max)	25A
Power (Watts) - Manufacture Series	83W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Mounting Style	Through Hole
Package	8-DIP Module, 1/4 Brick
Size / Dimension	2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	89%
Power (Watts) - Max	83W
Win Source Part Number	139588-PAQ100S483R3
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PAQ100S483R3 CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. PAQ100S483R3 is a power supply module that is designed for board mounting.

Manufacturer: TDK-Lambda Americas Inc.
Features: remote on/off, OCP, and OVP
Package Size: 8-DIP module, 1/4 brick
Dimensions: 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)
Applications: ITE (Commercial)
Voltage Isolation: 1.5kV (1500V)
Outputs: 1
Maximum Output Current: 25A
Power: 83W
Efficiency: 89%
Operating Temperature Range: -40°C ~ 85°C
