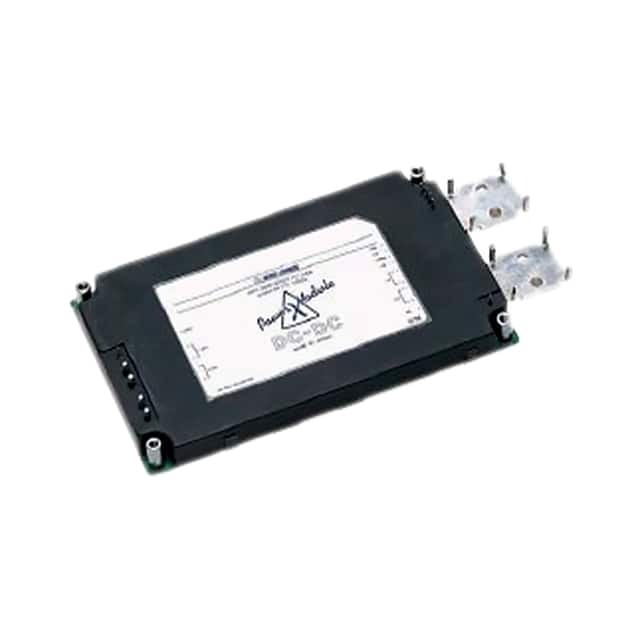

Same model may have multiple batches, images only for reference.
PH600S280-28
Same model may have multiple batches, images only for reference.

PH600S280-28

Part No PH600S280-28
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V 600W / Isolated Module DC DC Converter 1 Output 28V 21.5A 200V - 400V Input
Datasheet
PH600S280-28 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc.
Series PH-S (600W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 200V
Voltage - Input (Max) 400V
Voltage - Output 1 28V
Current - Output (Max) 21.5A
Power (Watts) 600 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Package / Case Module
Size / Dimension 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features Enable, Active Low
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 930343-PH600S280-28
Ultra Librarian 3D Model Ultra Librarian PH600S280-28 CAD Model

Description

The 930343-PH600S280-28 is a power supply module from TDK-Lambda Americas Inc.

  • Series: PH-S series
  • Type: 600W isolated module
  • Features: Remote On/Off, overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP)
  • Size: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
  • Applications: ITE (Commercial) applications
  • Output: Single output with a maximum current of 21.5A and a voltage of 28V
  • Input Voltage Range: 200V to 400V
  • Voltage Isolation: 3 kV
  • Mounting: Through-hole mounting
  • Temperature Range: -20°C to 85°C
  • Product Status: Obsolete product
  • MSL: 1 (Unlimited)
