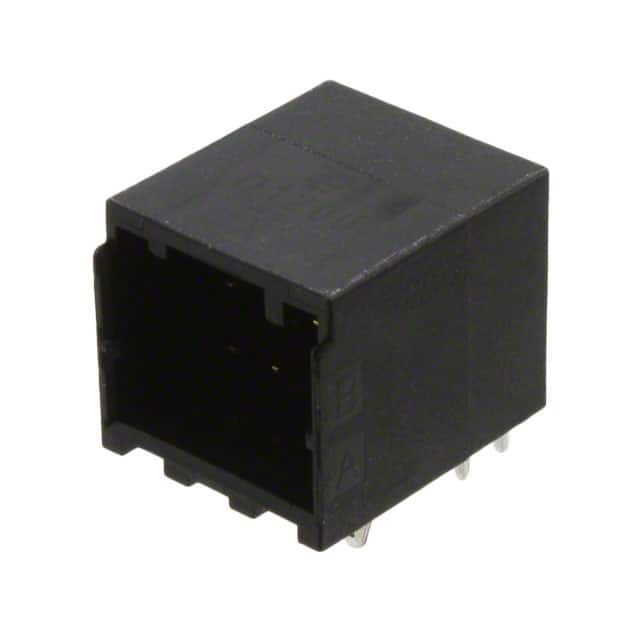

1-1827876-4
Same model may have multiple batches, images only for reference.

1-1827876-4

Part No 1-1827876-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2.5MM / Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-1200
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1827876
Standard Package 37 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853776-1-1827876-4
Ultra Librarian 3D Model Ultra Librarian 1-1827876-4 CAD Model

Description

The Dynamic D-1200 series from TE Connectivity offers a range of rectangular connectors designed for headers and male pins. TE Connectivity manufactures this series.

  • Series: Dynamic D-1200
  • Positions: 8
  • Features: Board Lock
  • Application: Board-to-Board or Cable
  • Mounting Type: Right-Angle
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Mounting: Through-Hole
  • Shrouded: 4-Wall
  • Pitch: 0.098" (2.50mm)
  • Row Spacing: 0.130" (3.30mm)
  • Flammability: UL94 V-0
  • Standard Package: 37 pieces
  • Insulation Material: Thermoplastic, Polyester, Glass Filled
  • Insulation Color: Black
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Temperature Range: -55°C to 105°C
