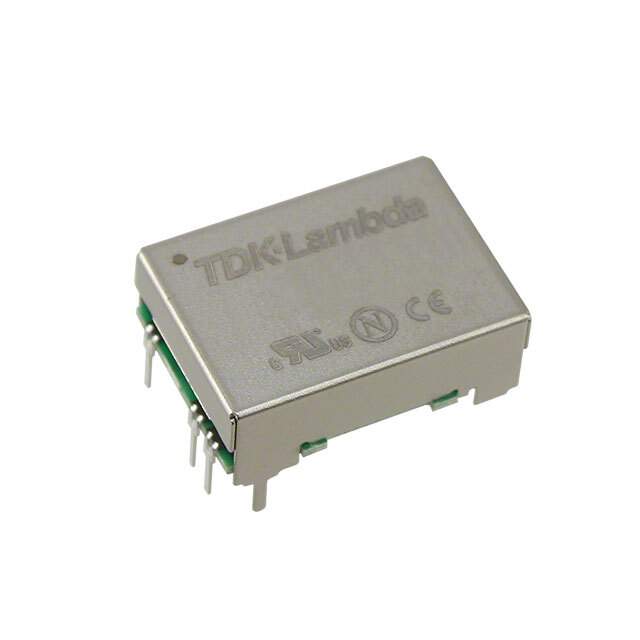

CC3-2412DF-E Real Image CC3-2412DF-E Real Image
Same model may have multiple batches, images only for reference.
CC3-2412DF-E Real Image CC3-2412DF-E Real Image
CC3-2412DF-E Real Image CC3-2412DF-E Real Image
Same model may have multiple batches, images only for reference.

CC3-2412DF-E

Part No CC3-2412DF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CNVRTR +/-12V TO +/-15V 3W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 125mA, 125mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (3W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12 ~ 15V
Voltage - Output 2 -12 ~ -15V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC3-2412
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1341157-CC3-2412DF-E
Ultra Librarian 3D Model Ultra Librarian CC3-2412DF-E CAD Model

Description

The CC3-2412DF-E is a 3W isolated module DC-DC converter from the CC-E (3W) series manufactured by TDK-Lambda Americas Inc.

  • Size / Dimension: 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
  • Number of Outputs: 2
  • Current - Output (Max): 125mA
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 12V ~ 15V
  • Voltage - Output 2: -12V ~ -15V
  • Features: Enable, Active Low
  • Applications: ITE (Commercial)
  • Mounting Type: Through Hole
  • Package / Case: 7-DIP Module
  • Operating Temperature: -40°C ~ 85°C
