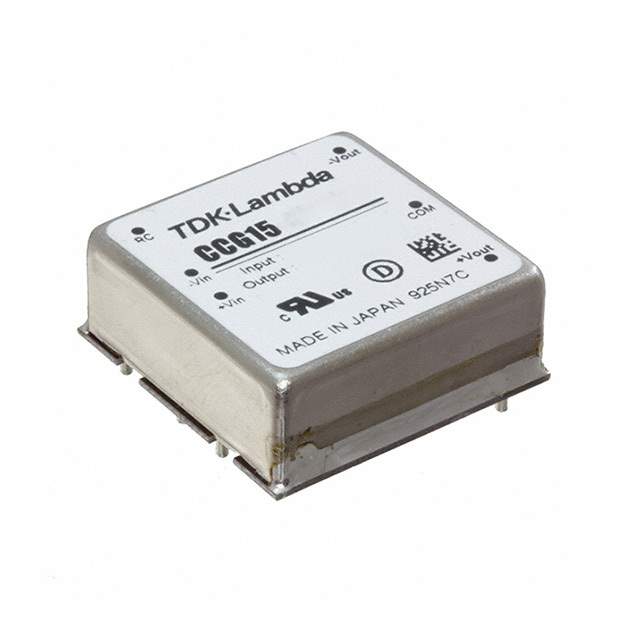

Same model may have multiple batches, images only for reference.

CCG15-48-05S

Name: CCG15-48-05S
Brand: TDK-Lambda Americas Inc.
SKU: 1337481
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CCG15-48-05S
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 18V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CCG15 (15W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	76V
Voltage - Output 1	5V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active Low
Base Product Number	CCG15
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1337481-CCG15-48-05S
Ultra Librarian 3D Model	Ultra Librarian CCG15-48-05S CAD Model

Alternative Products

Description

The CCG15-48-05S is a 15W isolated module DC-DC converter with a remote on/off feature, overcurrent protection, and overvoltage protection.

Power Rating: 15W
Isolation: Isolated Module
Remote On/Off: Yes
Overcurrent Protection: Yes
Overvoltage Protection: Yes
Package Type: 6-DIP Module
Voltage Isolation: 1.5kV
Input Voltage Range: 18V to 76V
Output Voltage: 5V
Efficiency: 87%
Maximum Output Current: 3A
Control Features: Enable, Active Low
Temperature Range: -40 degrees Celsius to 85 degrees Celsius
ECCN: EAR99
California Prop 65 Warning: Yes
