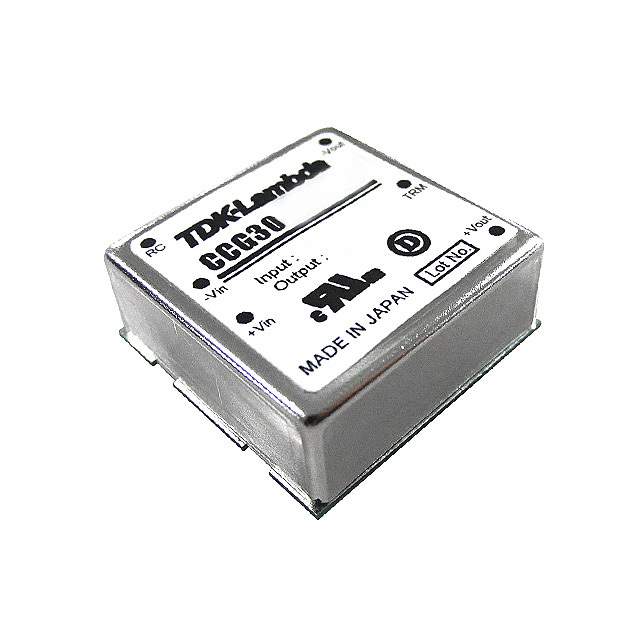

CCG30-24-15D Real Image
Same model may have multiple batches, images only for reference.

CCG30-24-15D

Part No CCG30-24-15D
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CCG30 (30W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1A, 1A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number CCG30
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1338207-CCG30-24-15D
Ultra Librarian 3D Model Ultra Librarian CCG30-24-15D CAD Model

Description

The TDK-Lambda CCG30-24-15D is a 30W isolated module DC-DC converter that is ideal for use in commercial applications.

  • Output Count: Two
  • Maximum Output Current: 1A each
  • Input Voltage: 9V to 36V
  • Output Voltage: 15V and -15V
  • Features: Remote On/Off, OCP, and OVP
  • Package: 6-DIP module
  • Size: 1.00” L x 1.00” W x 0.39” H (25.4mm x 25.4mm x 9.9mm)
  • Voltage Isolation: 1.5kV
  • Efficiency: 91%
  • Operating Temperature: -40°C to 85°C
