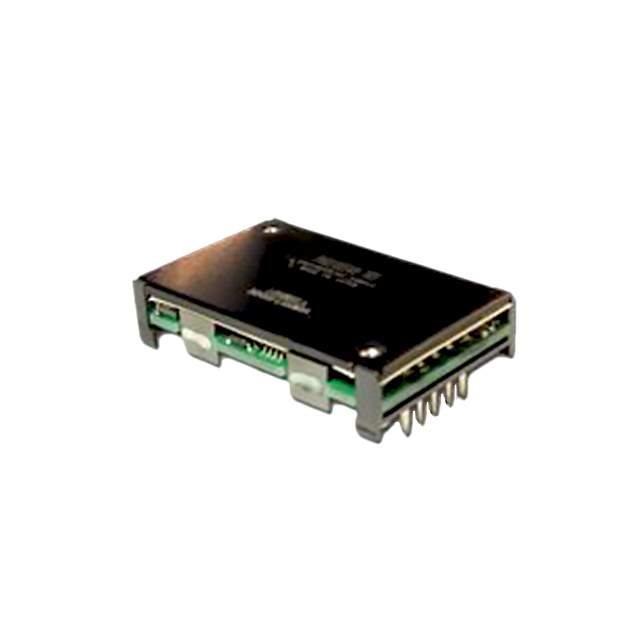

Same model may have multiple batches, images only for reference.

PAQ100S48-3R3/B

Name: PAQ100S48-3R3/B
Brand: TDK-Lambda Americas Inc.
SKU: 1335299
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PAQ100S48-3R3/B
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 83W / Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 76V Input
Datasheet	PAQ100S48-3R3/B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	TDK-Lambda Americas Inc
Packaging	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	3.3V
Current - Output (Max)	25A
Power (Watts)	83 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	89%
Mounting	Through Hole
Case / Package	8-DIP Module, 1/4 Brick
Size / Dimension	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Control Features	Enable, Active Low
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	PAQ100S483R3/B,285-PAQ100S48-3R3/B,PAQ100S48-3R3/B,PAQ100S483R3/B-ND
Standard Package	1
Win Source Part Number	1335299-PAQ100S48-3R3/B
Ultra Librarian 3D Model	Ultra Librarian PAQ100S48-3R3/B CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc 1335299-PAQ100S48-3R3/B is an 83W isolated module DC-DC converter.

Power: 83W
Mounting: through-hole
Case: 8-DIP module 1/4 brick
Number of Outputs: 1
Output Voltage: 3.3V
Maximum Output Current: 25A
Input Voltage: 36V to 76V
Efficiency: 89%
Remote On/Off: feature
OCP: OCP
OVP: OVP
Voltage Isolation: 1.5 kV
ROHS Compliance: ROHS compliant
HTSUS Code: 8504.40.9580
