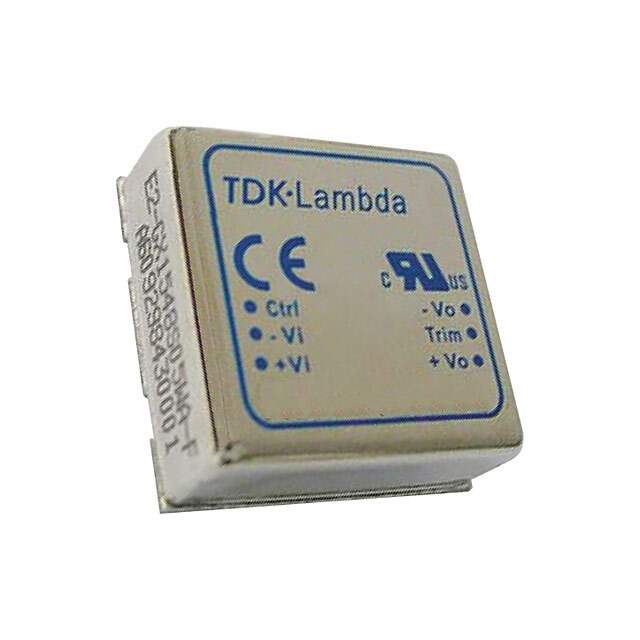

PXB15-24WD15/N Real Image
Same model may have multiple batches, images only for reference.

PXB15-24WD15/N

Part No PXB15-24WD15/N
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PXB (15W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 500mA, 500mA
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number PXB15
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337771-PXB15-24WD15/N
Ultra Librarian 3D Model Ultra Librarian PXB15-24WD15/N CAD Model

Description

The TDK-Lambda Americas Inc PXB15-24WD15/N is a 15W isolated module DC-DC converter in the PXB series.

  • Features: Remote On/Off, OCP, OVP, SCP
  • Package / Case: 6-DIP Module
  • Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Number of Outputs: 2
  • Current - Output (Max): 500mA, 500mA
  • Voltage - Input: 9V to 36V
  • Voltage - Output 1: 15V
  • Voltage - Output 2: -15V
  • Power (Watts): 15W
  • Efficiency: 88%
  • Control Features: Enable, Active Low
  • Voltage - Isolation: 1.6 kV
  • Applications: ITE (Commercial)
