Same model may have multiple batches, images only for reference.

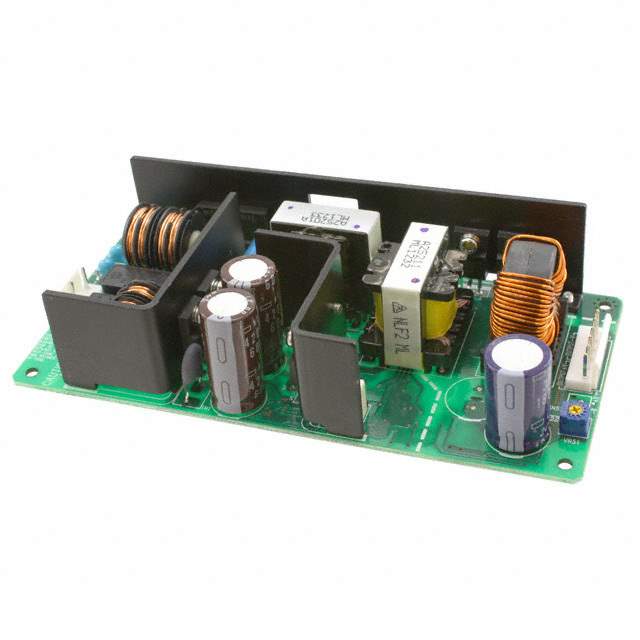

ZWS150BP-24 Real Image
Same model may have multiple batches, images only for reference.

ZWS150BP-24

Part No ZWS150BP-24
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 150W / Open Frame AC DC Converters 1 Output 24V 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series ZWS-BP (150W)
Package Bulk
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 24V
Current - Output 1 6.3 A
Power (Watts) 150W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 87%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm)
Approval Agency CE
Base Product Number ZWS150
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
California Prop 65 Warning Information
Win Source Part Number 1337548-ZWS150BP-24
Ultra Librarian 3D Model Ultra Librarian ZWS150BP-24 CAD Model

Description

The ZWS-BP (150W) is an adjustable output open frame power supply designed for ITE (Commercial) applications.

  • Features: DC Input Capability, Load Sharing, PFC, and Universal Input
  • Voltage Input Range: 85 ~ 265 VAC
  • Voltage Isolation: 3 kV
  • Power Output: 150W
  • Efficiency: 87%
  • Minimum Load: Not Specified
  • Size Dimensions: 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm)
  • Mounting Type: Chassis Mountable
  • Temperature Range: -10°C ~ 70°C (With Derating)
  • Approvals: CE
  • ECCN: EAR99
  • Standard Package: 1
