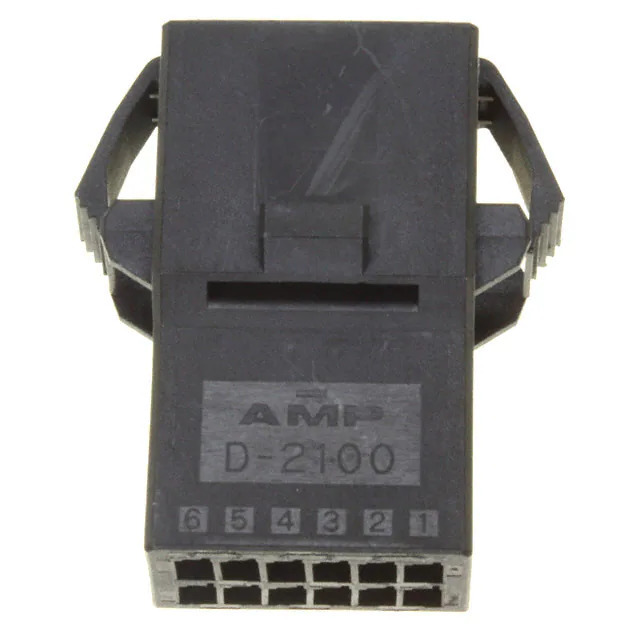

Same model may have multiple batches, images only for reference.

1-1318114-6

Name: 1-1318114-6
Brand: TE Connectivity
SKU: 1365546
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1318114-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 12POS 2.50MM / 12 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Dynamic D-2100
Package	Bulk
Product Status	Active
Connector Type	Plug
Contact Type	Male Pin
Number of Positions	12
Pitch	0.098" (2.50mm)
Number of Rows	2
Row Spacing	-
Mounting Type	Panel Mount, Snap-In
Contact Termination	Crimp
Fastening Type	-
Color	Black
Features	Polarizing Key
Temperature Range - Operating	-55°C ~ 105°C
Note	Contacts Not Included
Base Product Number	1318114
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365546-1-1318114-6
Ultra Librarian 3D Model	Ultra Librarian 1-1318114-6 CAD Model

Alternative Products

Description

The 1318114-6 is an active electronic component in the connectors, interconnects - rectangular connector housings category from TE Connectivity AMP Connectors.

Connector Type: Rectangular Connector Housing
Temperature Range: -55°C to 105°C
MSL: 1 (Unlimited)
Base Product Number: 1318114
Series: Dynamic D-2100
Packaging: Bulk
Color: Black
Mounting Type: Panel Mount, Snap-In
Mates With: Male Pin Contacts
Positions: 12
Rows: 2
