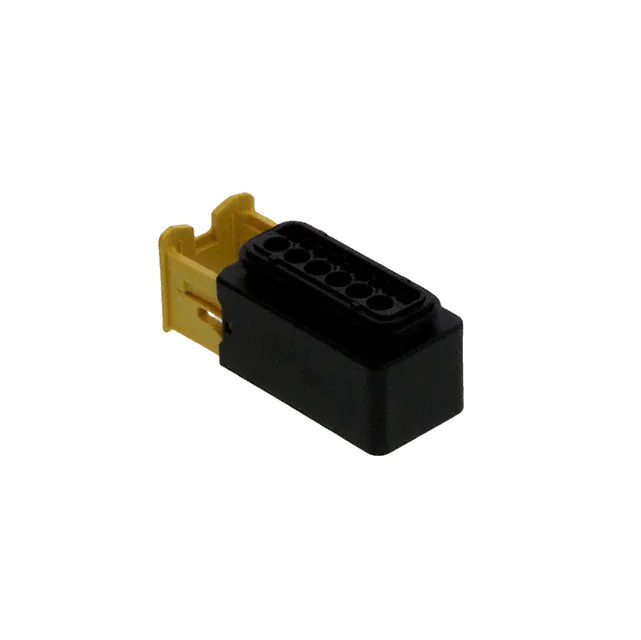

Same model may have multiple batches, images only for reference.

1-1563878-1

Name: 1-1563878-1
Brand: TE Connectivity
SKU: 1365734
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-1563878-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 15POS SEALED
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Heavy Duty Sealed Connector Series, MCP 1.5K/2.8
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	15
Pitch	-
Number of Rows	2
Row Spacing	0.236" (6.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Slide-On
Color	Black
Features	Sealed
Temperature Range - Operating	-40°C ~ 140°C
Note	Contacts Not Included
Base Product Number	1563878
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365734-1-1563878-1
Ultra Librarian 3D Model	Ultra Librarian 1-1563878-1 CAD Model

Alternative Products

Description

The Heavy Duty Sealed Connector Series, MCP 1.5K/2.8 series rectangular connector housing is a versatile component designed for free hanging (in-line) applications and manufactured by TE Connectivity AMP Connectors.

Series: Heavy Duty Sealed Connector Series, MCP 1.5K/2.8
Application: Free Hanging (In-Line)
Positions: 15
Rows: 2
Row Spacing: 0.236 inches (6.00mm)
Operating Temperature: -40°C to 140°C
Termination: Crimp
Color: Black
Product Status: Active
Base Product Number: 1563878
