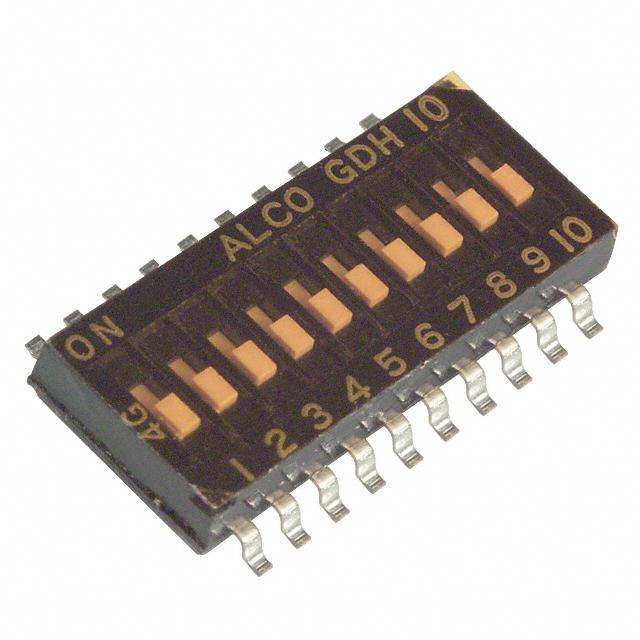

Part No 1-1571983-3
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
1-1571983-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series GDH
Packaging Tube
Circuit SPST
Number of Positions 10
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.544" (13.82mm)
Operating Temperature Range -30°C ~ 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 760236-1-1571983-3
Popularity Medium
Supply and Demand Status Balance
Family Name 1571983
Introduction Date March 16, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-1571983-3 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches GDH series is a SPST circuit slide actuator type switch.

  • Circuit: SPST
  • Actuator Type: Slide
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Termination: Gull-Wing
  • Pitch: 0.050" (1.27mm), half
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Height Above Board: 0.091" (2.30mm)
  • Length: 0.544" (13.82mm)
  • Features: Washable, Tape Seal
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Operating Temperature Range: -30°C ~ 85°C
  • Body Material: Polyphenylene Sulfide (PPS)
  • Packaging: Tube
  • Alternative Parts: A6HF-0102, A6HF-0102-PM, DHS 910
  • Introduction Date: March 16, 2005
  • Estimated EOL Date: 2026
  • Halogen-Free: Yes
  • Popularity: Medium
