Same model may have multiple batches, images only for reference.

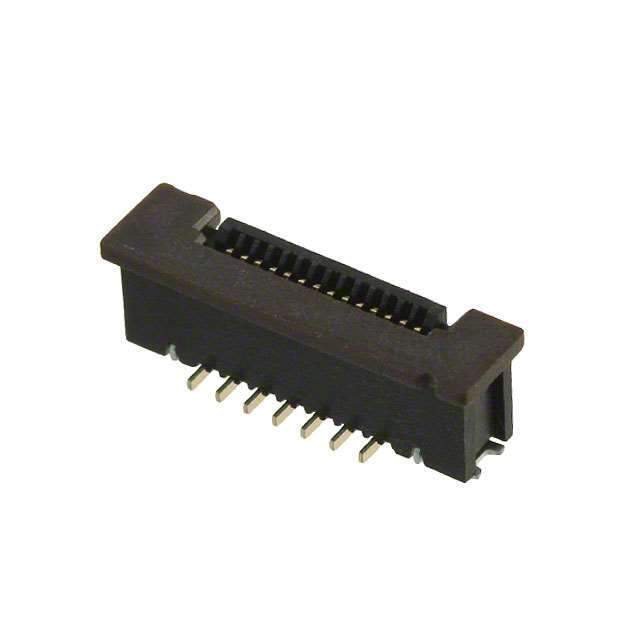

1-1734742-4 Real Image
Same model may have multiple batches, images only for reference.

1-1734742-4

Part No 1-1734742-4
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 14POS 0.50MM SMD / 14 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 14
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.163" (4.15mm)
Locking Feature Slide Lock
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Black
Actuator Color Brown
Base Product Number 1734742
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 117347424,A100234CT,A100234DKR,A100234TR
Standard Package 1,000
Win Source Part Number 1333314-1-1734742-4
Ultra Librarian 3D Model Ultra Librarian 1-1734742-4 CAD Model

Description

The 1333314-1-1734742-4 is a FFC, FPC (Flat Flexible) Connector Assembly from TE Connectivity AMP Connectors.

  • Number of Positions: 14
  • Pitch: 0.020" (0.50mm)
  • Solder Retention: yes
  • Insertion Force: zero insertion force (ZIF)
  • Packaging: reel
  • Contact Finish: gold
  • Contact Material: phosphor bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.163" (4.15mm)
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: contacts, vertical - 1 sided
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: slide lock
  • Mounting Technology: surface mount
  • Application: connectors and interconnects
  • ROHS3 Compliance: yes
  • ECCN: EAR99
