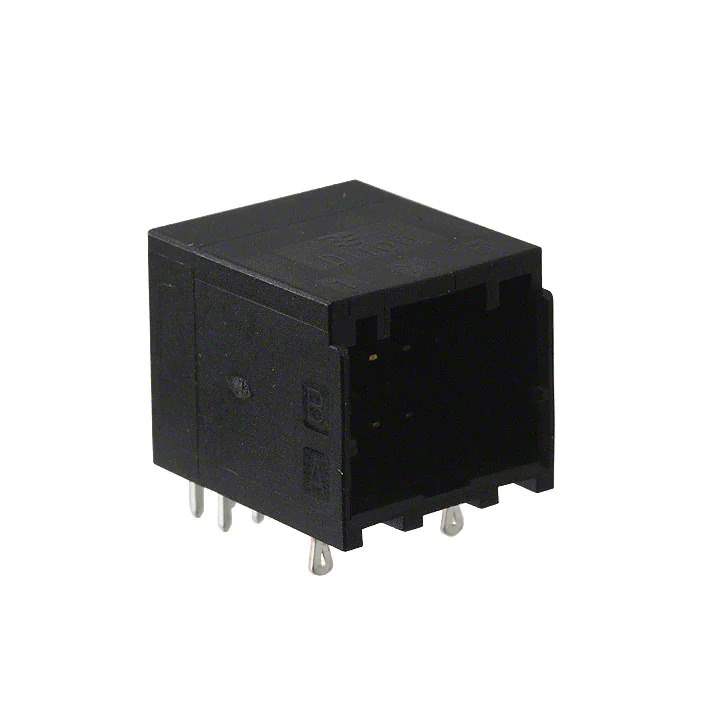

Same model may have multiple batches, images only for reference.

1-1827873-5

Name: 1-1827873-5
Brand: TE Connectivity
SKU: 853770
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1827873-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2MM / Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Dynamic D-1100
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.130" (3.30mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.122" (3.10mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Polyester, Glass Filled
Features	Board Lock
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	125V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	General Purpose, Industrial
Base Product Number	1827873
Standard Package	37 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853770-1-1827873-5
Ultra Librarian 3D Model	Ultra Librarian 1-1827873-5 CAD Model

Alternative Products

Description

The 853770-1-1827873-5 is a male pin header connector from TE Connectivity's Dynamic D-1100 series. TE Connectivity is the manufacturer.

Series: Dynamic D-1100
Number of Positions: 10
Features: Board Lock
Contact Material: Copper Alloy
Voltage Rating: 125V
Mounting: Through-Hole, Right-Angle
Fastening: Detent Lock
Package: Tube
Standard Package: 37 pcs
