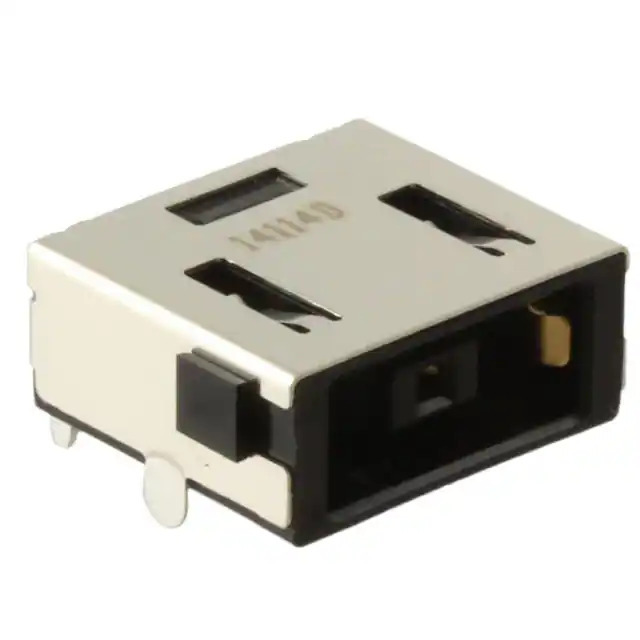

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr TE Connectivity AMP Connectors
Series DC-IN
Package Tape & Reel (TR)
Product Status Active
Connector Type Jack
Gender Female
Industry Recognized Mating Diameter -
Actual Diameter -
Number of Positions/Contacts 3 Conductors, 5 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Through Hole, Right Angle
Mounting Feature -
Termination Solder
Shielding Shielded
Features -
Insulation Color Black
Voltage - Rated 25VDC
Current Rating (Amps) 10.7 A
Mating Length/Depth -
Ingress Protection -
Material Flammability Rating -
Contact Material - Plating Gold
Body Material -
Includes -
Housing Material Thermoplastic
Contact Material Copper Alloy
Thread Size -
Body Color Black
Base Product Number 2129458
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364704-1-2129458-2
Ultra Librarian 3D Model Ultra Librarian 1-2129458-2 CAD Model

Description

The TE Connectivity AMP Connectors DC-IN Jack is a power connector used in electronic devices.

  • Voltage Rating: 25VDC
  • Current Rating: 10.7A
  • Shielded: Yes
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Gender: Female
  • Switch: No
  • Conductors: 3
  • Contacts: 5
  • Housing Material: Thermoplastic
  • Insulation Color: Black
  • Mounting: Through Hole
  • Mounting Type: Right Angle
