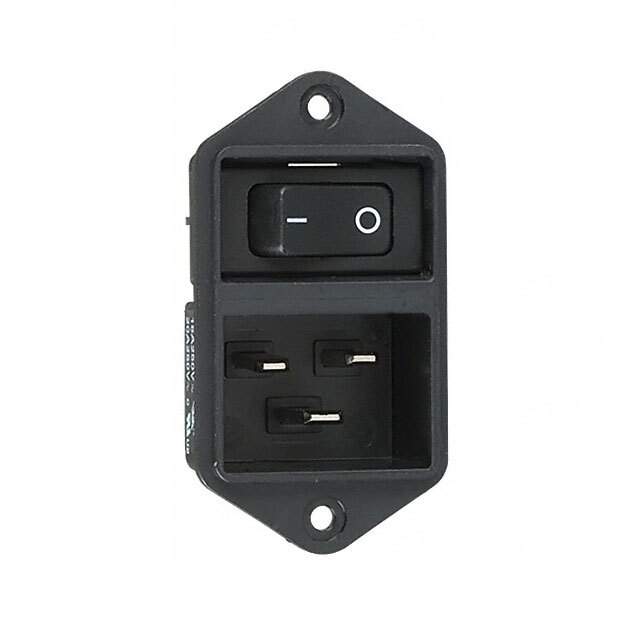

EC11.0001.001 Real Image
Same model may have multiple batches, images only for reference.

EC11.0001.001

Part No EC11.0001.001
Manufacturer Schurter Inc.
Catalog Barrel - Power Connectors
Description PWR ENT MOD RCPT IEC320-C20 PNL  /  Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr SCHURTER Inc.
Series EC11
Package Bulk
Connector Style IEC 320-C20
Connector Type Receptacle, Male Blades - Module
Current - IEC 16A
Voltage - IEC 250VAC
Current - UL 20A
Voltage - UL 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Switch Features Switch On-Off
Panel Cutout Dimensions Rectangular - 32.50mm x 46.50mm
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency cULus, ENEC
Base Product Number EC11.0001
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names EC11.0001.001-ND,486-1101,EC110001001
Standard Package 25
Win Source Part Number 1056733-EC11.0001.001
Ultra Librarian 3D Model Ultra Librarian EC11.0001.001 CAD Model

Description

The SCHURTER Inc. EC11.0001.001 power entry connector is a reliable and efficient solution for power inlets, outlets, and modules.

  • Positions: 3
  • Current Rating: 16A (IEC) and 20A (UL) with a voltage rating of 250VAC
  • Connector Type: receptacle with male blades and a module termination
  • Quick Connect: 0.250" (6.3mm)
  • Panel Cutout Dimension: rectangular - 32.50mm x 46.50mm
  • The EC11.0001: It is REACH unaffected and has an HTSUS of 8536.69.4030.
