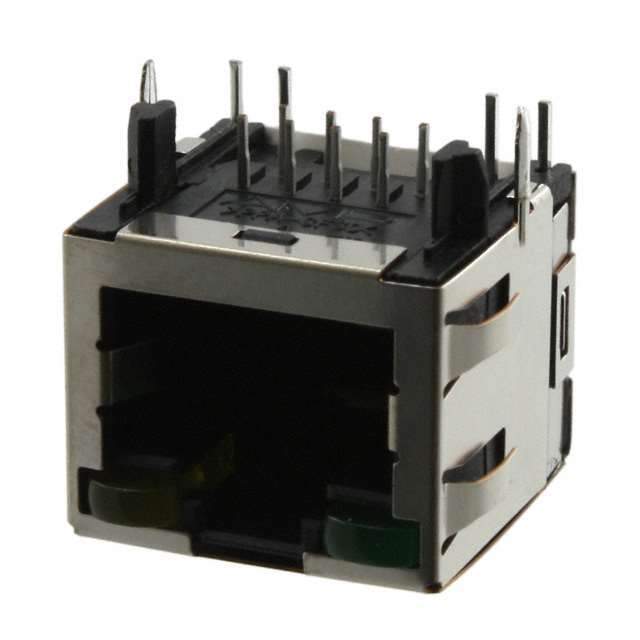

1-406507-4 Real Image
Same model may have multiple batches, images only for reference.

1-406507-4

Part No 1-406507-4
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Green - Yellow
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 406507
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1-406507-4-ND,2266-1-406507-4,-1-406507-4-CSI,14065074,-1-406507-4-SI,A102036
Standard Package 441
Win Source Part Number 1333910-1-406507-4
Ultra Librarian 3D Model Ultra Librarian 1-406507-4 CAD Model

Description

The TE Connectivity AMP Connectors 1333910-1-406507-4 is a modular connector jack that is designed for use in electronic devices.

  • Mounting: Through-hole technology
  • Orientation: 90-degree orientation
  • Ports: One port
  • Shielding: Shielding EMI finger
  • Application: Cat5 applications
  • LED Color: Green-yellow
  • Contact Finish: Gold
  • Contact Material: Phosphor bronze
  • Temperature Range: -40 to 85 degrees Celsius
