Same model may have multiple batches, images only for reference.

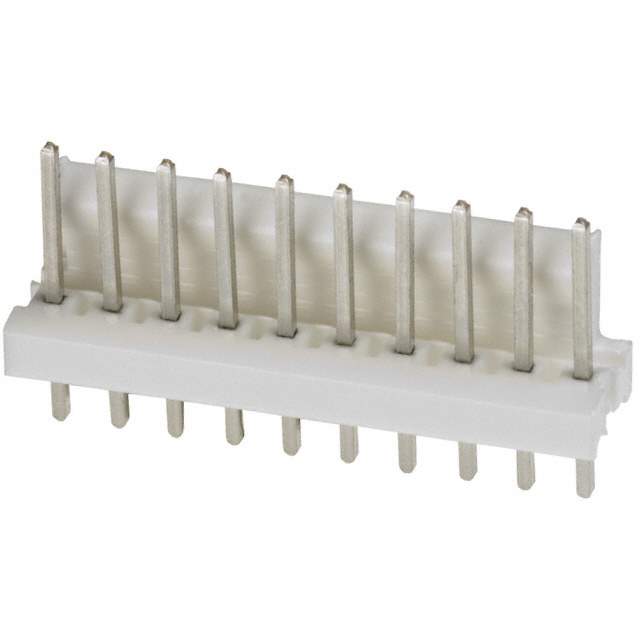

1-640456-0 Real Image
Same model may have multiple batches, images only for reference.

1-640456-0

Part No 1-640456-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 640456
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-640456-0-SI,A1925,-2-42934-0587-SI,EPU 00072002,-2-42934-0587-SI-ND,2266-1-640456-0,16404560,-2-42934-0587-LSI
Standard Package 1
Win Source Part Number 1332560-1-640456-0
Ultra Librarian 3D Model Ultra Librarian 1-640456-0 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a header male pin used for connectors and interconnects.

  • Contact Gender: Male Pin
  • Number of Positions: 10
  • Positions Loaded: All Positions
  • Termination Type: Solder
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VAC
  • Application: General Purpose
  • Contact Finish (Mating): Tin
  • Operating Temperature: -55°C to 105°C
