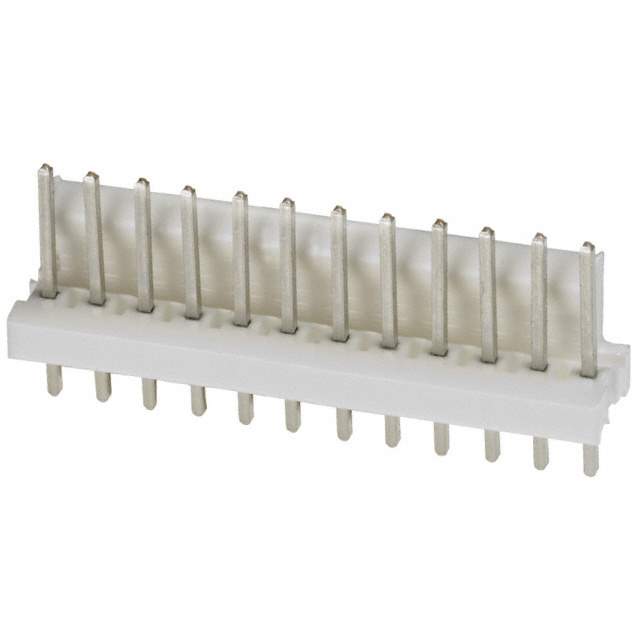

Same model may have multiple batches, images only for reference.

1-640456-2

Name: 1-640456-2
Brand: TE Connectivity
SKU: 1293106
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-640456-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	MTA-100
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.295" (7.49mm)
Contact Length - Post	0.140" (3.56mm)
Overall Contact Length	0.535" (13.59mm)
Insulation Height	0.305" (7.75mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC
Applications	General Purpose
Base Product Number	640456
Other Names	A19475,2266-1-640456-2,-1-640456-2-SI,-2-42934-0581-SI,-2-42934-0581-SI,16404562
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293106-1-640456-2
Ultra Librarian 3D Model	Ultra Librarian 1-640456-2 CAD Model

Alternative Products

Description

This MTA-100 series header connector is a high-quality electronic component designed for board-to-cable/wire applications.

Positions: 12
Contact Material: Copper alloy
Connector Type: Header
Contact Type: Male pin
Loaded Positions: All
Rows: One
Termination: Solder
Fastening Type: Friction lock
Insulation Material: Thermoplastic
Insulation Color: Natural
Mounting Type: Through hole
Contact Shape: Square
Contact Length: 0.140 inches
Insulation Height: 0.305 inches
Temperature Range: -55°C to 105°C
Voltage Rating: 250VAC
Contact Finish (Mating and Post): Tin
Applications: General purpose
