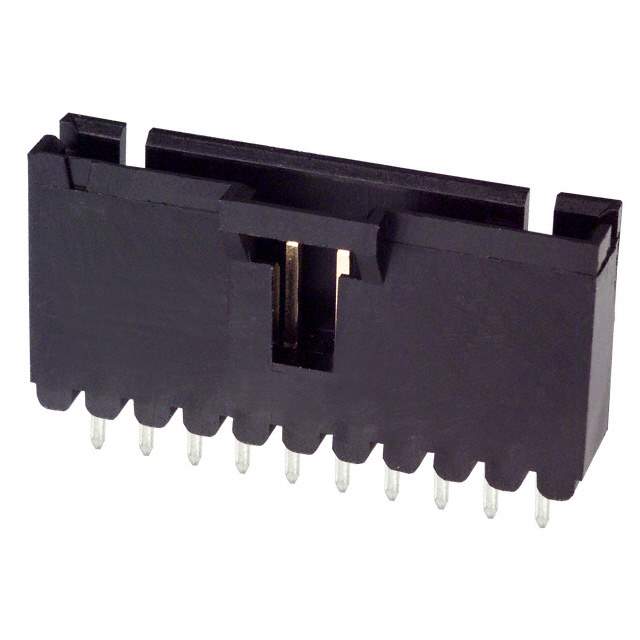

TE Connectivity AMP Connectors 885353 is a 10-position male pin header connector with a 0.100" (2.54mm) pitch.

• Positions: 10
• Pitch: 0.100" (2.54mm)
• Series: AMPMODU MTE
• Keying Slot: Yes
• Applications: Board-to-board or Cable-to-board, Automotive, General Purpose, Medical, Telecommunications
• Contact Material: Brass
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin-Lead
• Contact Length (Mating): 0.230" (5.84mm)
• Contact Length (Post): 0.130" (3.30mm)
• Overall Contact Length: 0.545" (13.84mm)
• Insulation Height: 0.535" (13.60mm)
• Shrouded: 4 Walls
• Mounting Style: Through-Hole
• Fastening Type: Latch Holder
• Temperature Range: -65°C ~ 105°C
• Current Rating: 3A
• Insulation Material: Thermoplastic
• Flammability Rating: UL94 V-0
• Package: Tube
• ECCN: EAR99
