Same model may have multiple batches, images only for reference.

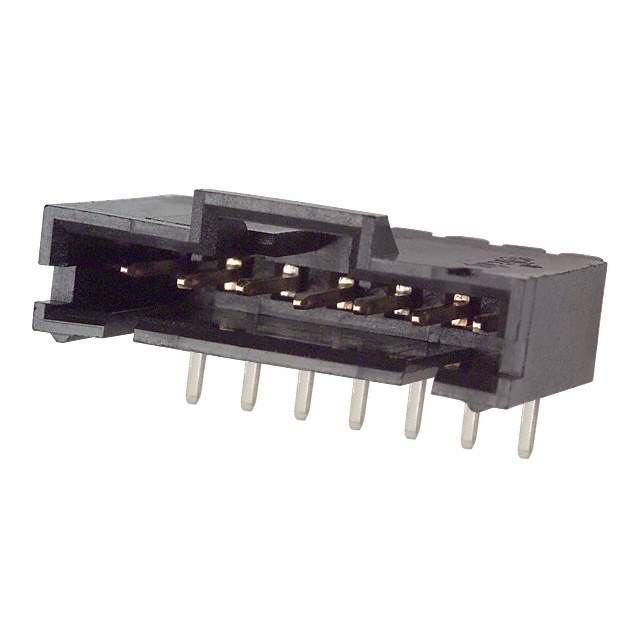

103906-6

Name: 103906-6
Brand: TE Connectivity
SKU: 1008156
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	103906-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 7POS 2.54MM / Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU MTE
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.200" (5.08mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	103906
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	1039066,A28633,103906-6-ND,-103906-6-SI
Standard Package	26
Win Source Part Number	1008156-103906-6
Ultra Librarian 3D Model	Ultra Librarian 103906-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 103906-6 is a male pin header connector that is part of the AMPMODU MTE series.

Series: AMPMODU MTE
Applications: Automotive, General Purpose, Medical, and Telecommunications
Connection Type: Board-to-board or Cable
Pitch: 0.100 inches
Id: 885354
Positions Loaded: All Seven
Fastening Type: Latch Holder
Shrouded: Four Walls
Material: Brass
Contact Finish: Gold
Contact Finish Thickness: 30.0μin
Temperature Range: -65°C to 105°C
RoHS Compliant: No
