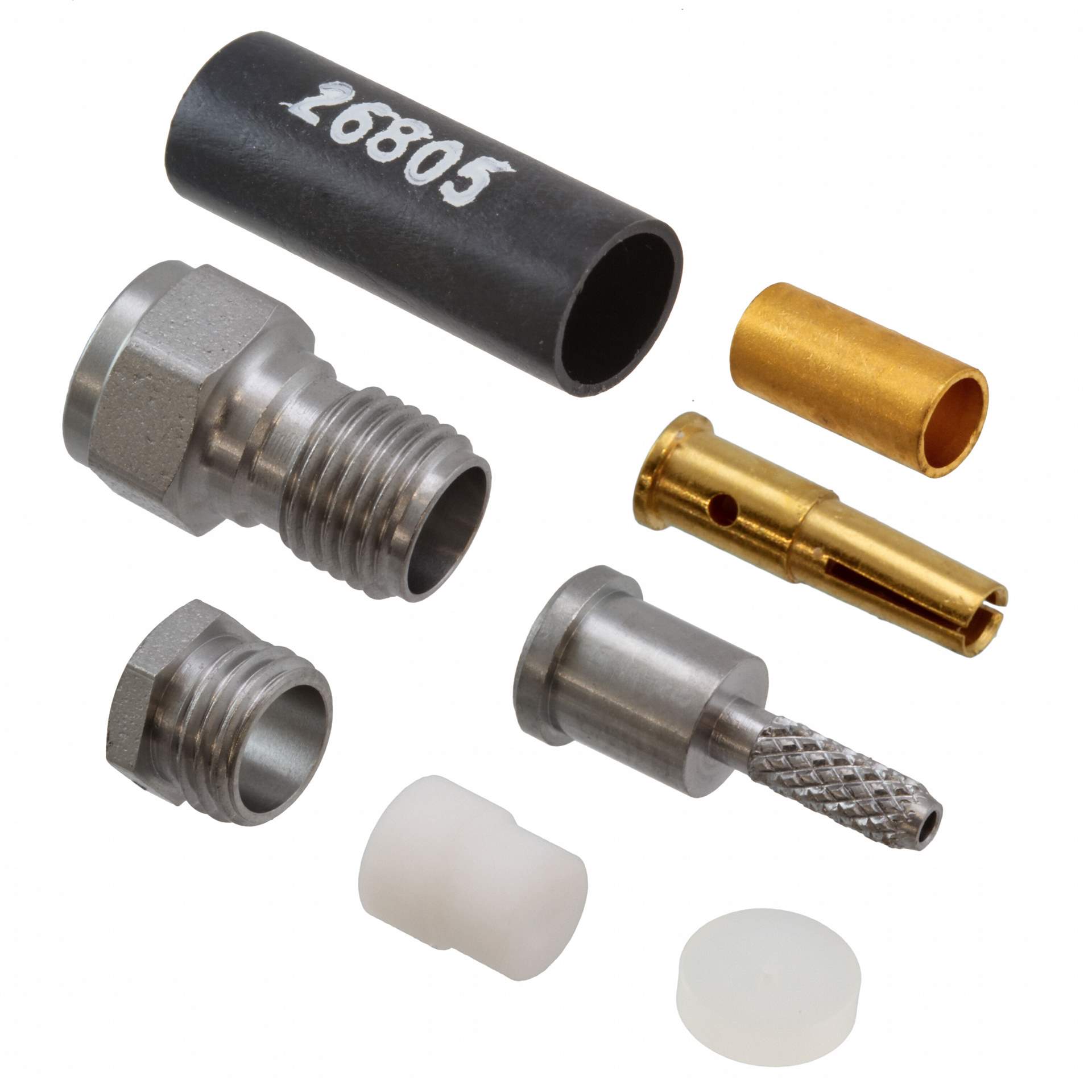

Same model may have multiple batches, images only for reference.

1051869-1

Name: 1051869-1
Brand: TE Connectivity
SKU: 1035618
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1051869-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN SMA JACK STR 50 OHM SOLDER / SMA Connector Jack, Female Socket 50Ohm Free Hanging (In-Line) Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Product Status	Obsolete
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Crimp
Impedance	50Ohm
Mounting Type	Free Hanging (In-Line)
Cable Group	RG-178, 196
Fastening Type	Threaded
Frequency - Max	12 GHz
Number of Ports	1
Housing Color	Silver
Center Contact Material	Beryllium Copper
Includes	8 pcs - 1 Connector, 1 Bushing, 1 Clamp, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Sleeve
Body Material	Stainless Steel
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	170 V
Mating Cycles	500
Base Product Number	1051
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	A111728,-1051869-1-SI,-2032-5026-02-SI-ND,2032-5026-02,2266-1051869-1,1051869-1-ND,-2032-5026-02-SI
Standard Package	1,000
Win Source Part Number	1035618-1051869-1
Ultra Librarian 3D Model	Ultra Librarian 1051869-1 CAD Model

Alternative Products

Description

It is a category of connectors and interconnects and is an RF coaxial connector.

Type: female socket
Fastening Type: threaded
Voltage Rating: 170 V
Frequency Max: 12 GHz
Number of Ports: 1
Impedance: 50 Ohm
Mounting Type: free hanging (in-line)
Temperature Range for Operating: -65°C to 165°C
Package: bulk
Standard Package: 1,000
