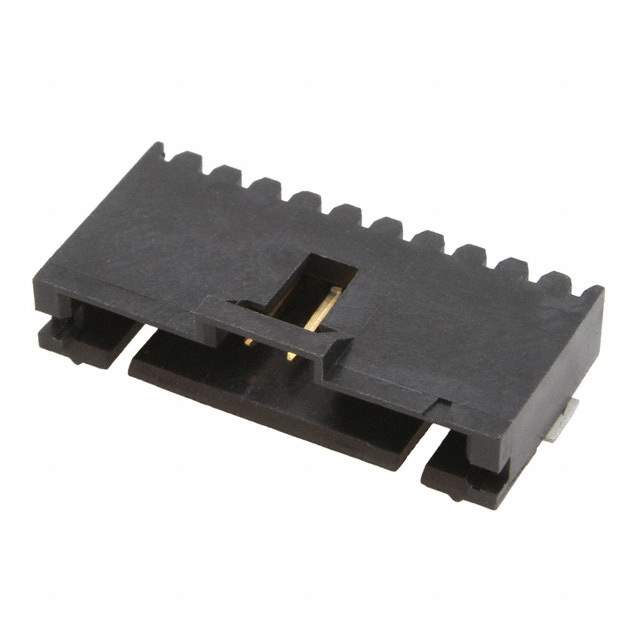

147323-8 Real Image
Same model may have multiple batches, images only for reference.

147323-8

Part No 147323-8
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 9POS 2.54MM / Connector Header Surface Mount, Right Angle 9 position 0.100" (2.54mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU MTE
Package Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.200" (5.08mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features Board Lock, Keying Slot, Solder Retention
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 147323
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-147323-8
Standard Package 900
Win Source Part Number 1018512-147323-8
Ultra Librarian 3D Model Ultra Librarian 147323-8 CAD Model

Description

The TE Connectivity AMP Connectors 1018512-147323-8 is a board-to-board or cable header connector suitable for various applications such as automotive, general purpose, medical, and telecommunications.

  • Positions: 9
  • Pitch: 0.100 inches
  • Positions Loaded: All
  • Board Lock: Yes
  • Keying Slot: Yes
  • Solder Retention: Yes
  • Contact Material: Brass
  • Contact Finish (Mating): Gold (30.0µin)
  • Contact Finish (Post): Gold (100.0µin)
  • Color: Black
  • Material Flammability Rating: UL94 V-0
