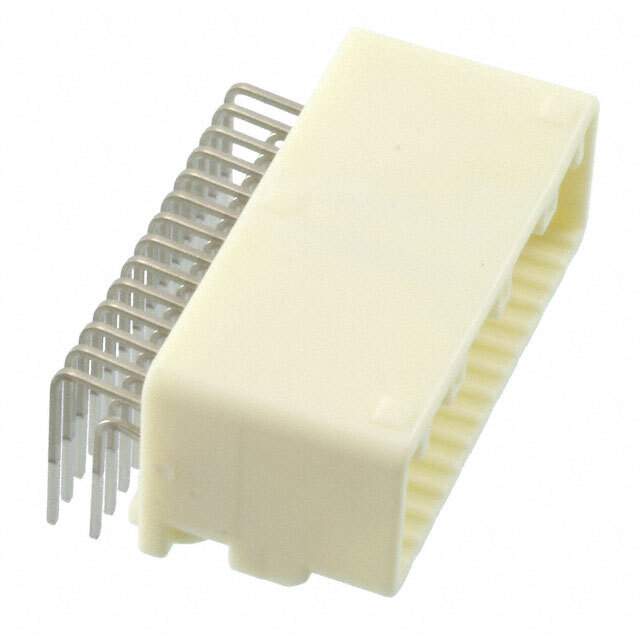

1565373-4 Real Image
Same model may have multiple batches, images only for reference.

1565373-4

Part No 1565373-4
Manufacturer TE Connectivity
Catalog OEM Parts (0 - 9)
Description MULTILOCK 025 Series, 28Way Through Hole SocketWire to Board Conn, w/ Solder Term
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit Application Signal
Color Natural
Connector Type Male Pin, Receptacle
Contact Material Brass
Contact Mating Length 5.5118 mm
Contact Plating Tin
Depth 24.47 mm
ELV Compliant
Gender Female
Height 15.5 mm
Housing Color Natural
Housing Material Polystyrene
Length 24.4602 mm
Maximum Operating Temperature 221 °C
Max Voltage Rating (DC) 12 V
Min Operating Temperature -22 °C
Mount Through Hole
Number of Contacts 28
Number of Positions 28
Number of Rows 2
Number of Signal Positions 28
Orientation Right Angle
PCB Thickness 1.6 mm
Pitch 2.2098 mm
Radiation Hardening No
RoHS Compliant
Shielding Unshielded
Tab Thickness 640 µm
Tab Width 635 µm
Termination Solder
Width 36.195 mm
Win Source Part Number 1027076-1565373-4
Categories OEM Parts(0-9)
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1565373-4 CAD Model

Description

The 1027076-1565373-4 is a male pin and receptacle connector manufactured by TE Connectivity.

  • Positions: 28
  • Pitch: 2.2098 mm
  • Mounting: Through hole
  • Orientation: Right angle
  • Maximum Operating Temperature: 221 °C
  • Minimum Operating Temperature: -22 °C
  • PCB Thickness: 1.6 mm
  • Compliance: RoHS and ELV regulations
