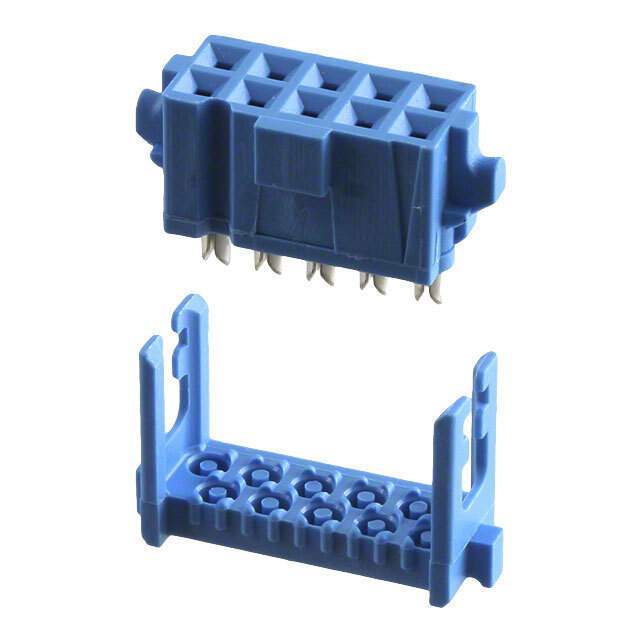

1658526-4 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1658526-4

Part No 1658526-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 10P IDC 28-30AWG GOLD
Datasheet
1658526-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307264-1658526-4
Category Connectors, Interconnects Rectangular Connectors Free Hanging, Panel Mount
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 1658526-4 CAD Model

Description

Ribbon Cable Connectors, Wire-to-Board, 10 Position, 2.54 mm [.1 in] Centerline, 2 Row, Receptacle, Polarization Mating Alignment Type, Wire & Cable
