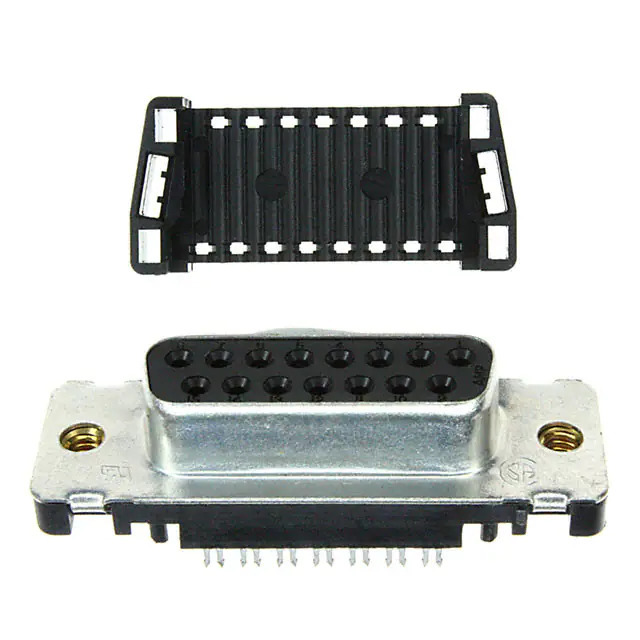

Same model may have multiple batches, images only for reference.
1658610-3 TE Connectivity
Same model may have multiple batches, images only for reference.

1658610-3

Part No 1658610-3
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS IDC / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDF-20
Package Bulk
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.25A
Backset Spacing -
Features Feed Through
Voltage Rating -
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge 26-28 AWG, Stranded or Solid
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1658610
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1365213-1658610-3
Ultra Librarian 3D Model Ultra Librarian 1658610-3 CAD Model

Description

The 1365213-1658610-3 is a D-Sub connector assembly from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HDF-20
  • Connector Type: Receptacle with female sockets
  • Number of Positions: 15
  • Number of Rows: 2
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -55°C to 105°C
  • Features: Feed Through Contacts
  • Current Rating: 1.25A
  • Contact Finish: Gold
  • Color: Black
  • Materials: Phosphor Bronze and Thermoplastic
  • Product Status: Obsolete
  • Packaging: Bulk
