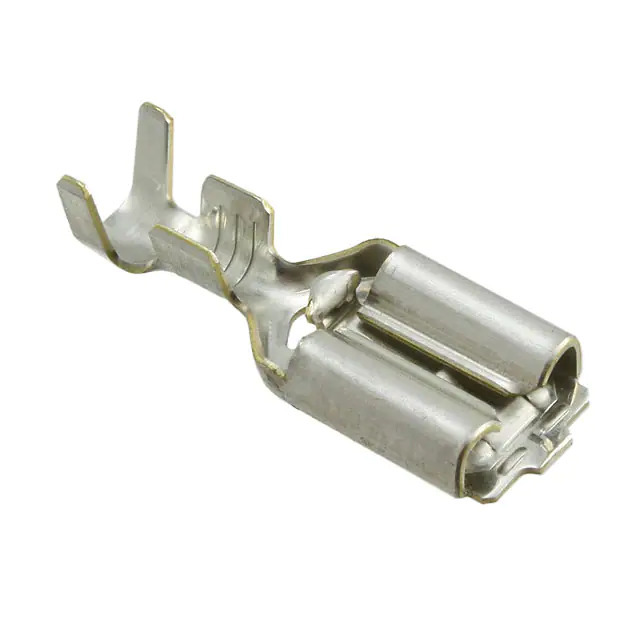

175023-1 TE Connectivity
Same model may have multiple batches, images only for reference.

175023-1

Part No 175023-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-18AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Positive Lock EX
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Length - Overall 0.836" (21.23mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.087" ~ 0.134" (2.21mm ~ 3.40mm)
Base Product Number 175023
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364849-175023-1
Ultra Librarian 3D Model Ultra Librarian 175023-1 CAD Model

Description

The TE Connectivity AMP Connectors Positive Lock EX quick disconnect connector is a reliable component for various applications. It features a female gender and a standard terminal type.

  • Gender: Female
  • Terminal Type: Standard
  • Contact Finish: Tin
  • Contact Material: Brass
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Wire Gauge: 14-18 AWG
  • Overall Length: 0.836" (21.23mm)
  • Product Status: Active
