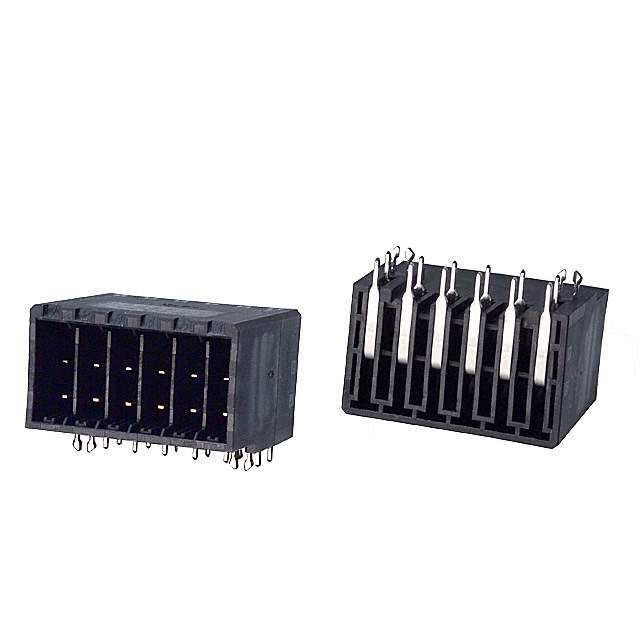

177555-2 Real Image
Same model may have multiple batches, images only for reference.

177555-2

Part No 177555-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3500
Package Tube
Connector Type Header
Contact Type Tab
Pitch - Mating 0.200" (5.08mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.774" (19.67mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 600V
Applications General Purpose, Industrial
Base Product Number 177555
Other Names A29845,-177555-2-SI,2266-177555-2,A29845R
Standard Package 14
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293110-177555-2
Ultra Librarian 3D Model Ultra Librarian 177555-2 CAD Model

Description

The Dynamic D-3500 series 12-position header connector from TE Connectivity AMP Connectors is designed for use in general purpose and industrial applications.

  • Features: Board lock
  • Fastening Type: Detent lock
  • Voltage Rating: 600V
  • RoHS Compliant: Yes
  • Insulation Material: Thermoplastic, polyester, and glass-filled
  • Shrouded: 4 walls
  • Mounting Style: Through hole, right angle
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Pitch: 0.200" (5.08mm)
  • Row Spacing: 0.200" (5.08mm)
  • Temperature Range: -55°C ~ 105°C
  • Applications: Various applications
