Same model may have multiple batches, images only for reference.

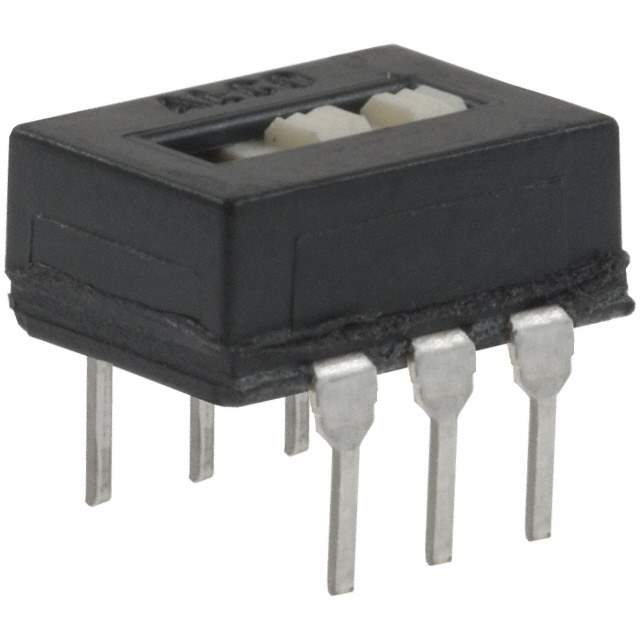

1825011-1 Real Image
Same model may have multiple batches, images only for reference.

1825011-1

Part No 1825011-1
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 115V  /  Slide Switch DPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ASF
Package Tube
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 115 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Tape Seal
Temperature Range - Operating -40°C ~ 80°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.79mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 950gf
Base Product Number 1825011
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names ASF2204,ASF2204-ND,-ASF2204-SI-ND,-ASF2204-SI,450-1561,-1825011-1-SI
Standard Package 50
Win Source Part Number 1092409-1825011-1
Ultra Librarian 3D Model Ultra Librarian 1825011-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches ASF2204 is a slide switch with a DPDT circuit and a voltage rating of 115V.

  • Contact Timing: Shorting (MBB)
  • Actuator Type: Screwdriver slot
  • Switch Function: On-On
  • Actuator Length: Flush
  • Electrical Life: 15,000 cycles
  • Mechanical Life: 15,000 cycles
  • Mounting Type: Through-hole
  • Operating Temperature: -40°C to 80°C
