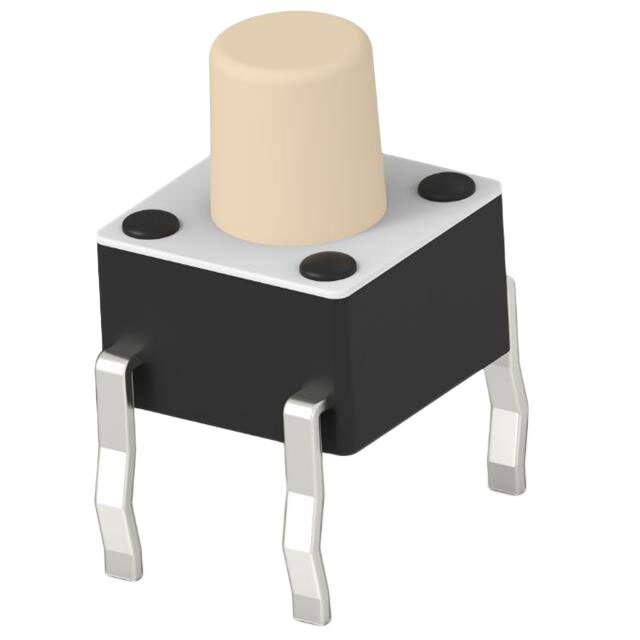

1-1825910-8 Real Image
Same model may have multiple batches, images only for reference.

1-1825910-8

Part No 1-1825910-8
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number 1-1825910
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number 450-1647,FSM10JH,2266-1-1825910-8,-FSM10JH-LSI
Standard Package 750
Win Source Part Number 1323799-1-1825910-8
Ultra Librarian 3D Model Ultra Librarian 1-1825910-8 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches manufactured 1323799-1-1825910-8 is a tactile switch that comes in a bulk packaging format.

  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Operating Temperature: -35 degrees Celsius to 85 degrees Celsius
  • Actuator Height off PCB, Vertical: 7.30mm
