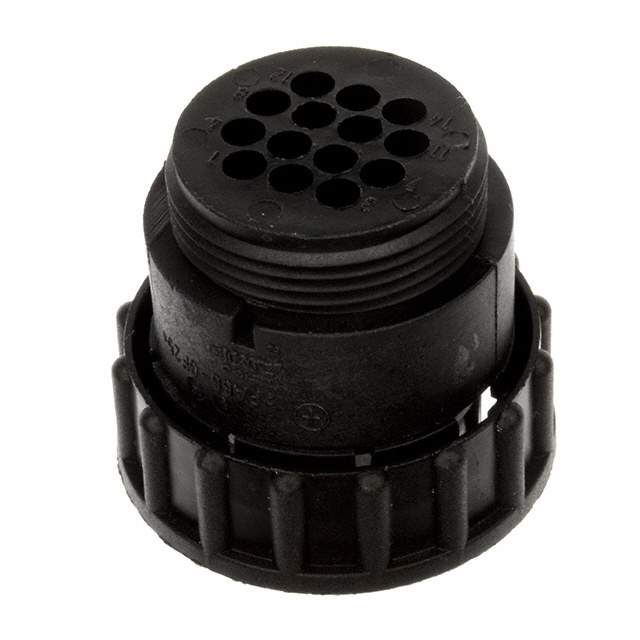

182649-1 Real Image
Same model may have multiple batches, images only for reference.

182649-1

Part No 182649-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSG MALE 14POS INLINE / 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 14
Shell Size - Insert 17-14
Contact Type Crimp
Contact Size 16
Mounting Free Hanging (In-Line)
Fastening Type Threaded
Orientation Keyed
Shell Material Thermoplastic
Housing Color Black
Material Flammability Rating UL94 V-0
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 182649
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number A99538,182649-1-ND,1826491
Standard Package 100
Win Source Part Number 1334510-182649-1
Ultra Librarian 3D Model Ultra Librarian 182649-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334510-182649-1 is a plug housing type circular connector with a coupling nut.

  • Mounting Style: Free-Hanging (In-Line)
  • Shell Size-Insert: 17-14
  • Positions: 14
  • Contact Size: 16
  • Contact Type: Crimp
  • Housing Material: Thermoplastic
  • Housing Color: Black
  • Insert Material: Thermoplastic
  • Keyed: Yes
  • Material Flammability Rating: UL94 V-0
  • ROHS Compliant: Yes
  • Temperature Range: -55°C to 105°C
