Same model may have multiple batches, images only for reference.

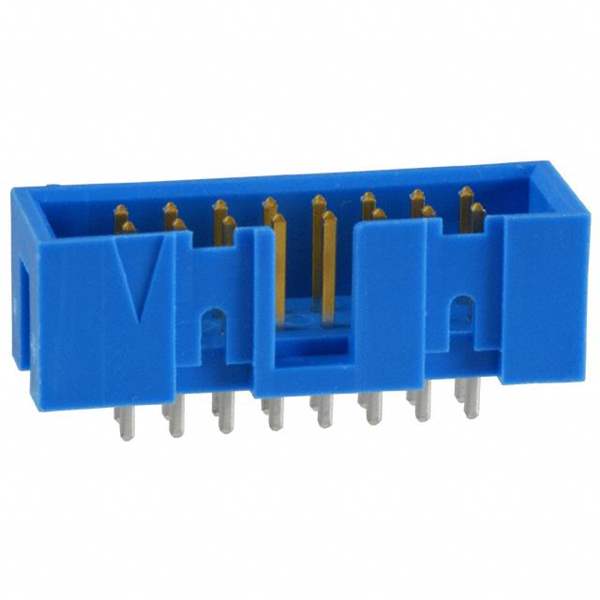

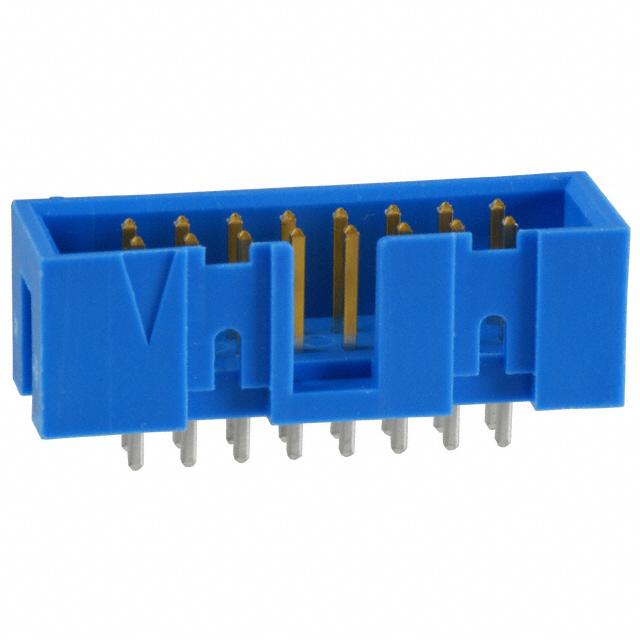

2-1761603-6

Name: 2-1761603-6
Brand: TE Connectivity
SKU: 761803
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-1761603-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER LOPRO STR 16POS 30AU
Datasheet	2-1761603-6 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	AMP-Latch
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.102" (2.60mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Operating Temperature Range	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Current Rating	1A per Contact
Voltage Rating	250VAC
Contact Finish Thickness - Post	100μin (2.54μm)
Win Source Part Number	761803-2-1761603-6
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Industrial
Family Name	1761603
Introduction Date	July 20, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 2-1761603-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP-Latch 1761603-2 is a header connector.

Positions: 16
Mounting: Through-Hole
Application: Board-to-Cable/Wire
