Same model may have multiple batches, images only for reference.

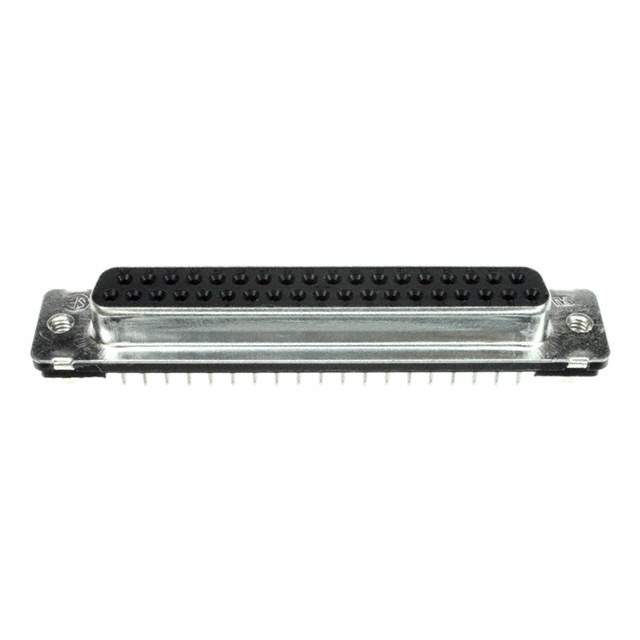

2-5747709-0 Real Image
Same model may have multiple batches, images only for reference.

2-5747709-0

Part No 2-5747709-0
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 37POS VERT SLDR / 37 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Features Board Lock
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747709
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 257477090,Q3097535,A34088
Standard Package 7
Win Source Part Number 1333169-2-5747709-0
Ultra Librarian 3D Model Ultra Librarian 2-5747709-0 CAD Model

Description

The TE Connectivity AMP Connectors 5747709-0 is a D-sub connector assembly used in various applications.

  • Positions: 37
  • Connector Type: Receptacle, Female Sockets
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Mounting: Through Hole
  • Current Rating: 6A
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • RoHS: Compliant
  • Standard Package: 7 pieces
  • REACH: Affected
  • Flange Feature: Housing/Shell (4-40)
