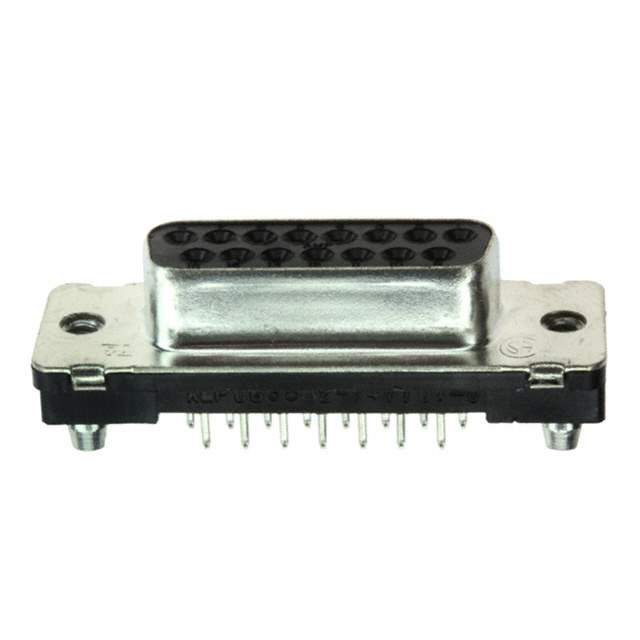

2-747707-0 Real Image
Same model may have multiple batches, images only for reference.

2-747707-0

Part No 2-747707-0
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 15POS VERT SLDR  /  15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Features Board Lock
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747707
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2-747707-0-SI,A23200,2266-2-747707-0,Q2403985
Standard Package 819
Win Source Part Number 1036249-2-747707-0
Ultra Librarian 3D Model Ultra Librarian 2-747707-0 CAD Model

Description

The AMPLIMITE HD-20 series is a range of high-density D-sub connectors designed to provide reliable and secure connections for a variety of applications. The 888382 model is a 15-position receptacle with female sockets and a black color.

  • Series: AMPLIMITE HD-20
  • Positions: 15
  • Gender: Female
  • Color: Black
  • Feature: Board lock
  • Termination: Soldering
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Voltage Rating: 125V
  • Temperature Range: -55°C to 105°C
  • Housing Material: Steel
  • Shell Material: Tin-plated steel
  • Flammability Rating: UL94 V-0
