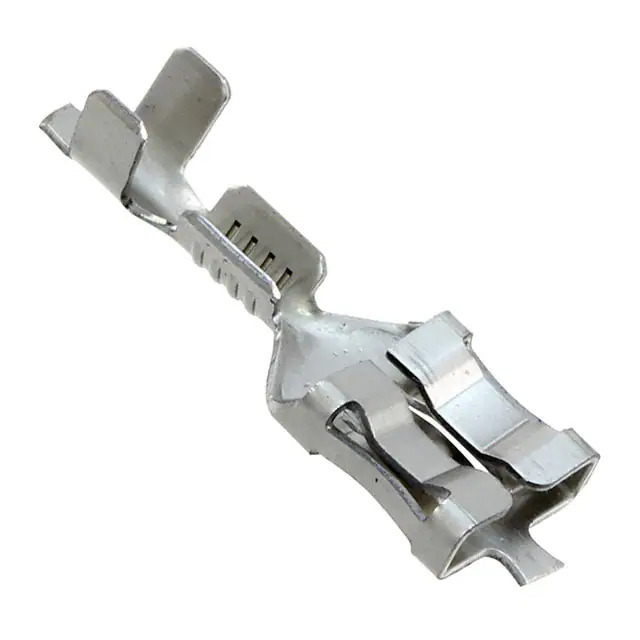

2178438-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2178438-1

Part No 2178438-1
Manufacturer TE Connectivity
Catalog Terminals
Description 6.3 SRS F-SPRING LIF RECEPTACLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.276" (7.01mm)
Length - Overall 0.748" (19.00mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features Low Insertion Force (LIF)
Color -
Contact Material Steel
Contact Finish Nickel
Insulation Diameter 0.055" ~ 0.083" (1.40mm ~ 2.11mm)
Base Product Number 2178438
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377402-2178438-1
Ultra Librarian 3D Model Ultra Librarian 2178438-1 CAD Model

Description

The TE Connectivity AMP Connectors Faston female terminal is a reliable and versatile component for quick connect and disconnect applications from TE Connectivity AMP Connectors.

  • Terminal Type: Standard
  • Wire Gauge: 20 to 24 AWG
  • Material: Steel
  • Finish: Nickel
  • Overall Length: 0.748" (19.00mm)
  • Insulation Diameter: 0.055" to 0.083" (1.40mm to 2.11mm)
