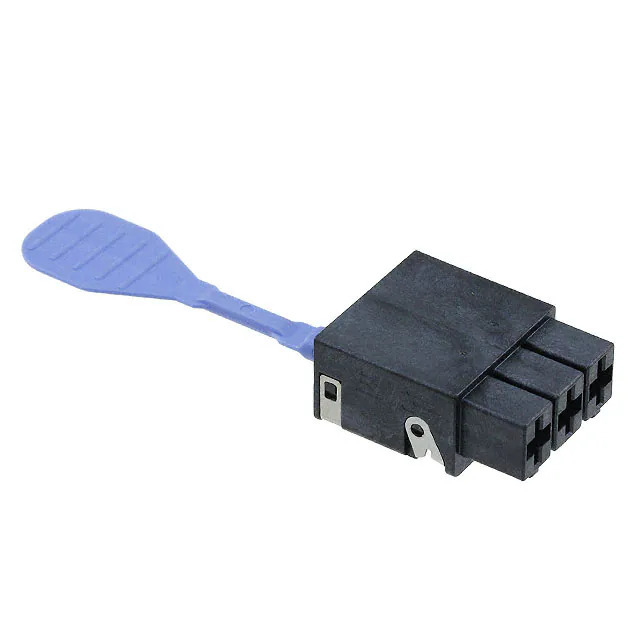

2204534-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2204534-1

Part No 2204534-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT 3POS FREE HANGING / 3 Connector Receptacle, Female Sockets Free Hanging (In-Line) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Elcon Mini
Package Tray
Product Status Active
Connector Usage -
Connector Type Receptacle, Female Sockets
Connector Style -
Number of Positions 3
Number of Positions Loaded -
Pitch 0.224" (5.70mm)
Number of Rows 1
Number of Columns -
Mounting Type Free Hanging (In-Line)
Termination Crimp
Contact Layout, Typical 3 Power
Features Pull Tab
Contact Finish Silver
Contact Finish Thickness 3.00µin (0.076µm)
Color Black
Current Rating (Amps) 35A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 400V
Base Product Number 2204534
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1364705-2204534-1
Ultra Librarian 3D Model Ultra Librarian 2204534-1 CAD Model

Description

The 1364705-2204534-1 is a specialized backplane connector from TE Connectivity AMP Connectors.

  • Mounting: Free Hanging (In-Line)
  • Contact Finish: Silver
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Color: Black
  • Type: Receptacle with Female Sockets
  • Positions: 3
  • Rows: 1
  • Current Rating: 35A
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 400V
  • Pitch: 0.224" (5.70mm)
  • Product Status: Active
