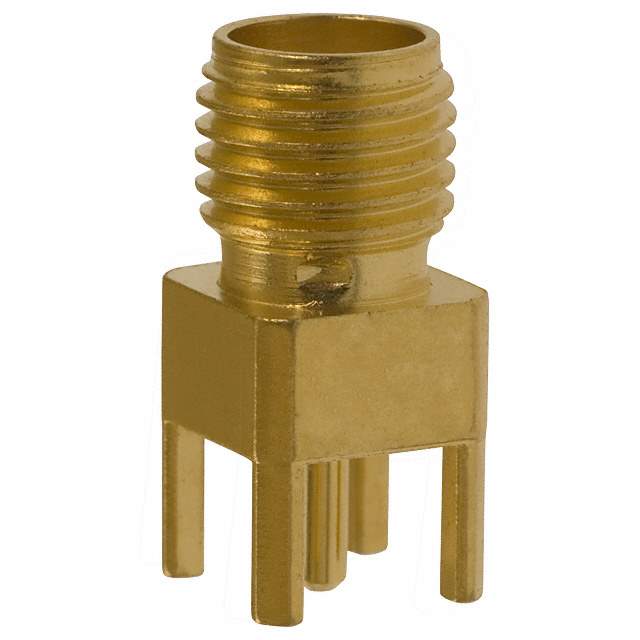

Same model may have multiple batches, images only for reference.

221789-1

Name: 221789-1
Brand: TE Connectivity
SKU: 1010474
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	221789-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN SMA JACK STR 50 OHM PCB / SMA Connector Jack, Female Socket 50Ohm Through Hole Solder
Datasheet	221789-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Product Status	Obsolete
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Through Hole
Fastening Type	Threaded
Frequency - Max	4 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Beryllium Copper
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	335 V
Mating Cycles	500
Insertion Loss	0.3dB
Base Product Number	221789
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	-221789-1-SI,2266-221789-1,221789-1-ND,2217891,A24691
Standard Package	1
Win Source Part Number	1010474-221789-1
Ultra Librarian 3D Model	Ultra Librarian 221789-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors SMA female socket connector is a high-quality connector designed for use in RF applications.

Manufacturer: TE Connectivity AMP Connectors
Type: SMA Female Socket Connector
Voltage Rating: 335V
Maximum Frequency: 4GHz
Impedance: 50 ohms
Insertion Loss: 0.3dB
Fastening Type: Threaded
Package: Bulk
Housing Color: Gold
Body Material: Brass
Center Contact Material: Beryllium Copper
Center Contact Plating: Gold
Temperature Range: -65°C ~ 165°C
REACH: Affected
HTSUS Code: 8536.69.4010
MSL Level: 1 (Unlimited)
