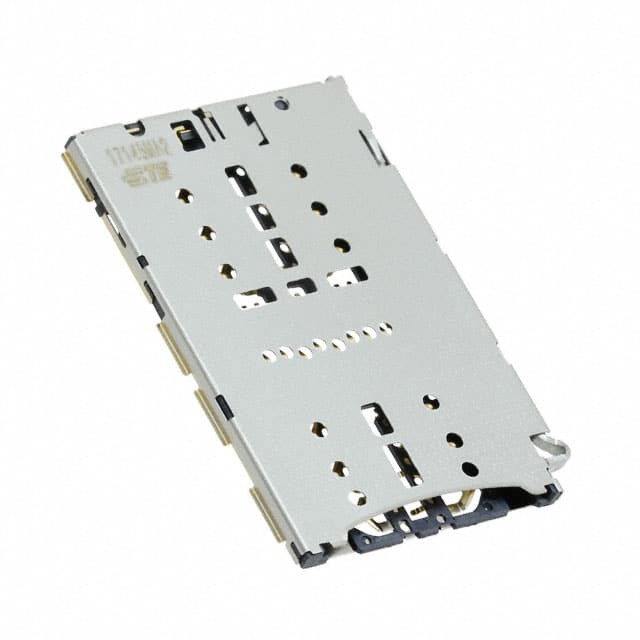

Same model may have multiple batches, images only for reference.

2290741-1

Name: 2290741-1
Brand: TE Connectivity
SKU: 854632
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2290741-1
Manufacturer	TE Connectivity
Catalog	Memory Connectors - PC Card Sockets
Description	CONN COMBO CARD PUSH/PULL R/A / 20 Position Card Connector Combo - microSD?, NANO SIM Surface Mount, Right Angle Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr	TE Connectivity
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Card Type	Combo - microSD™, NANO SIM
Number of Positions	20
Connector Type	Connector
Insertion, Removal Method	Push In, Pull Out
Mounting Type	Surface Mount, Right Angle
Features	Switch
Height Above Board	0.056" (1.42mm)
Mounting Feature	Normal, Standard - Top
Contact Finish	Gold
Base Product Number	2290741
Standard Package	1,200 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854632-2290741-1
Ultra Librarian 3D Model	Ultra Librarian 2290741-1 CAD Model

Alternative Products

Description

The 854632-2290741-1 electronic component from TE Connectivity is a PC Card socket connector.

Positions: 20
Switch: Yes
Mounting Type: Surface Mount, Right Angle
Height Above Board: 0.056" (1.42mm)
Card Type: Combo microSD™ and NANO SIM
Insertion/Removal Method: Push In and Pull Out
Mounting Feature: Normal, Standard - Top
Contact Finish: Gold
Package Quantity: 1,200 pieces
REACH Status: Vendor Undefined
